Game Gear IPS + Built-in USB-C - Modded Sega Game Gear with Flash Cart

A Game Gear you will actually want to play

The original Game Gear LCD is dim, blurry, ghosts badly in motion, and has a viewing angle measured in degrees. It was the machine’s famous weak point in 1991 and thirty years has not been kind to it.

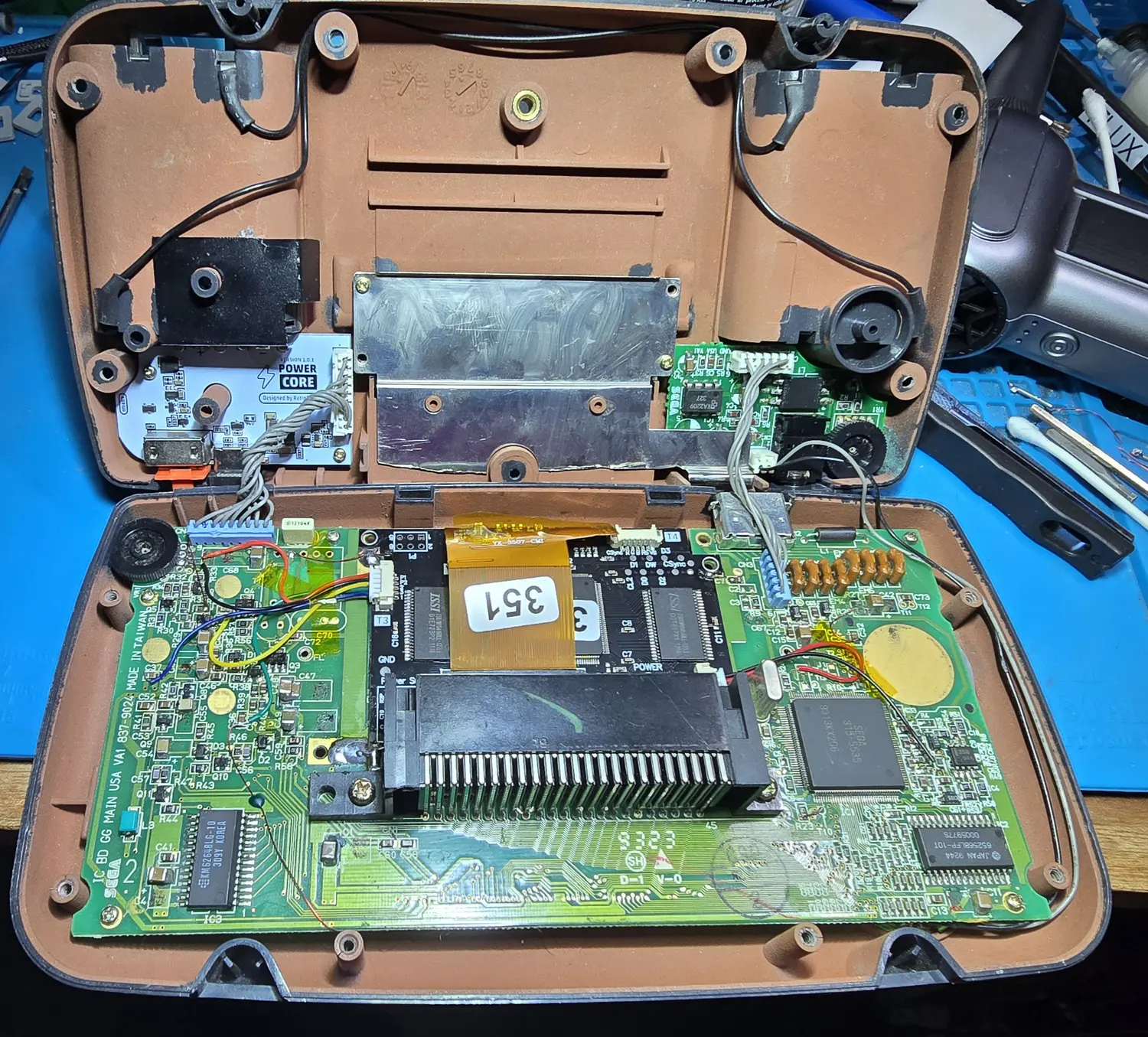

This one has an IPS panel fitted, with its own driver board sitting over the cartridge slot area. Bright, sharp, wide viewing angle, no ghosting. It is the single biggest difference between “I own a Game Gear” and “I play my Game Gear.”

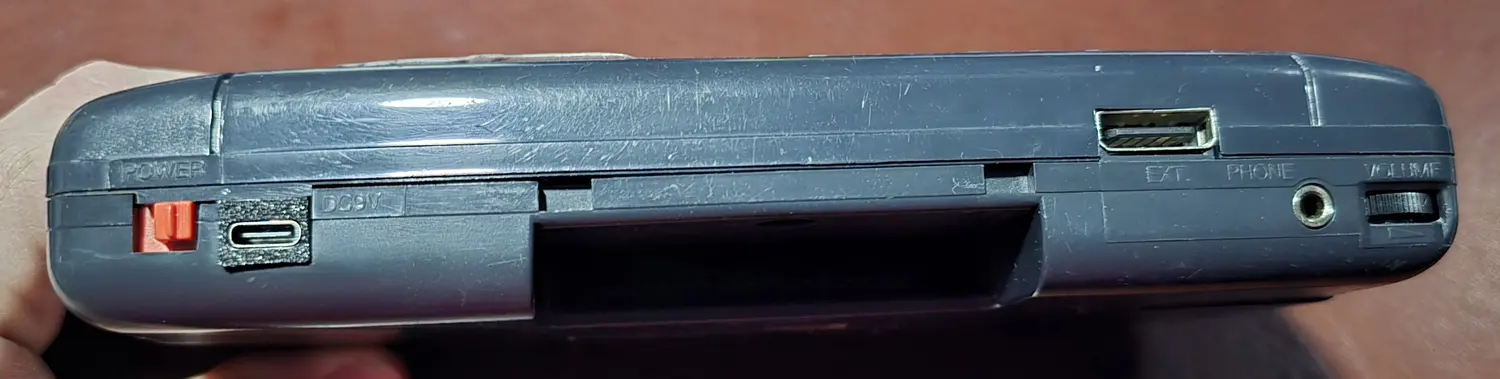

Power is the other half of the problem, and it is solved the same way. The console has a RetroSix PowerCore board fitted, which puts a real USB-C port in the opening where the barrel jack used to be. Photo 3 shows it. Nothing hangs off the side, there is no adapter to lose, and the shell still helpfully says DC9V right next to a USB-C receptacle. It takes plain 5 V USB and boosts internally, with no USB-PD negotiation, so it is not fussy about what you plug it into. I have run it off a laptop port, a wall brick, and an Anker Prime power bank without it complaining. Six AA batteries still work if you want them.

It also comes with a Flash Gear Pro+ cartridge, which runs the Game Gear, Master System and SG-1000 libraries off a microSD card. No cartridge hunting, no paying collector prices for the handful of good ones, no deciding at the couch which two games you brought with you. It is a clone rather than a genuine Krikzz, and the section below sets out exactly what that costs you.

No AA batteries and no USB-C cable are included. You almost certainly own several already.

One thing that photographs badly. The screen lens still has its factory protective film on it, never peeled. In photos it reads as haze or a smudge along the top edge, so it looks at a glance like the lens is marked. It is not. The film is intact and the lens under it has never been exposed, which is about as good as the front of a modified Game Gear gets. Peel it when it arrives, or leave it on and keep the lens perfect for another while.

See the difference for yourself

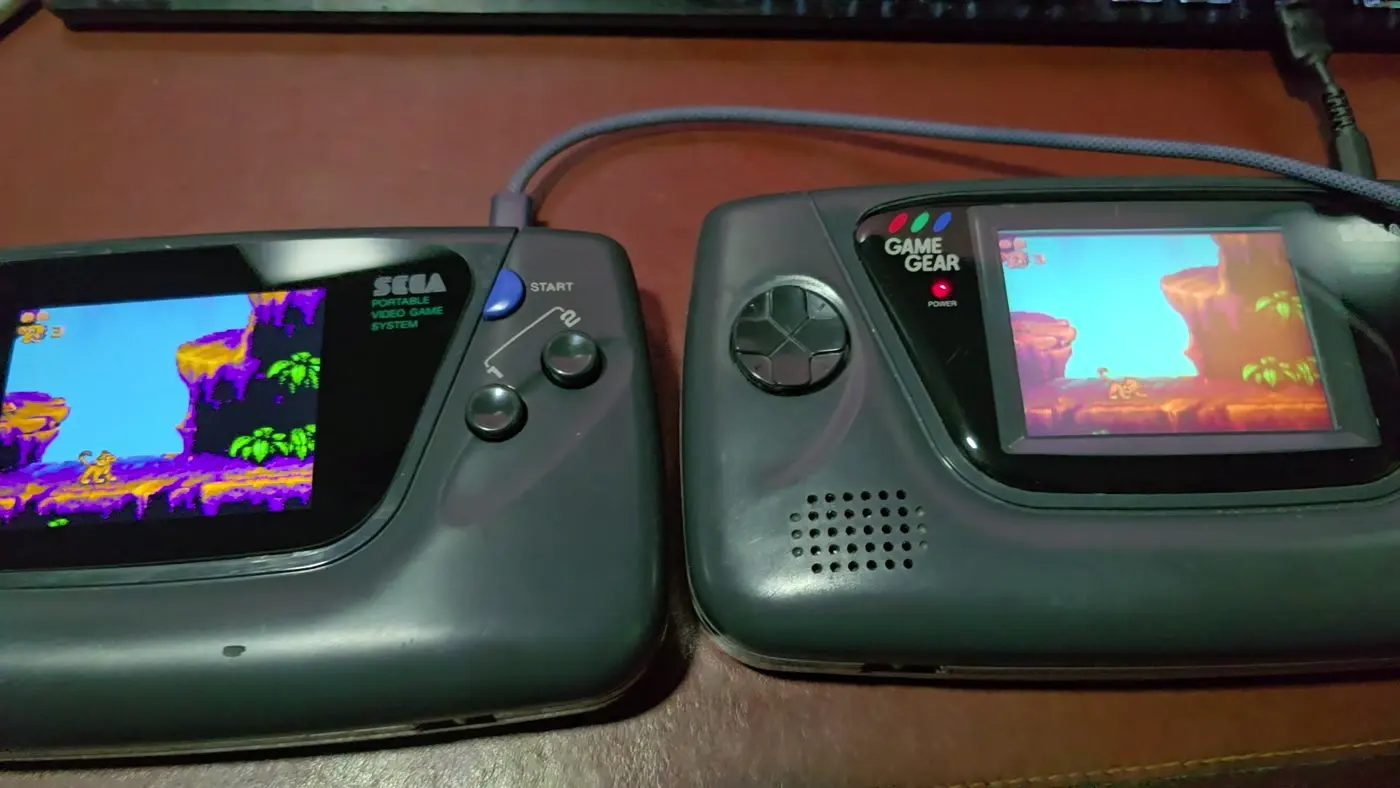

The video above is two Game Gears side by side, running the same game at the same moment. IPS on the left, original LCD on the right. I shot it on my bench to answer the question people always ask, which is whether the upgrade is really that noticeable.

Watch the blacks rather than the bright colours. On the original panel they come out grey and the whole image sits behind a haze; on the IPS they are actually black, and the edges of the sprites are edges instead of smears.

Three things so the comparison stays fair. That is a demonstration pair, not this listing’s console; it is the same IPS kit and the same original panel type, but it was filmed on a different day with different hardware. The IPS unit in the video has no protective film on its lens, so it is showing you what this console looks like once you peel the film off the front. And a phone camera is unkind to the original screen in a way your eyes are not, because it exposes for one panel and lets the other go murky. The original Game Gear screen is genuinely dim and genuinely smeary in motion. It is not quite as bad in person as a camera makes it look.

Even allowing for that, the gap is the reason this modification exists.

The flash cart covers the library, but a real cartridge going into a real slot is still a different feeling, and the IPS panel makes the old labels look better than they ever did on the original screen. Anything on the shelf ships in the same box on one shipping charge: Super Columns, Mortal Kombat, Ecco: The Tides of Time, and a couple of dozen others. Every one is tested in a real console before it goes out.

If you want one that has not been touched, I have those too

Nothing here is a criticism of an original machine. If what you want is the console Sega actually shipped, buy one of these instead and be happier with it:

• Recapped, original screen, three games keeps the Sega LCD, comes with three real cartridges, and gets its USB-C from an adapter that plugs into the DC jack, so nothing inside the console is altered.
• The all-original Game Gear goes further: made in Japan, both original battery doors, the EXT port cover still fitted, and no games, for the buyer who only wants the console.

Making a Game Gear pleasant to use in 2026 means replacing the screen, and replacing the screen means the machine is no longer strictly the machine. Those two listings are for people who care about that. This one is for people who want to play it.

What the flash cart is, and what it is not

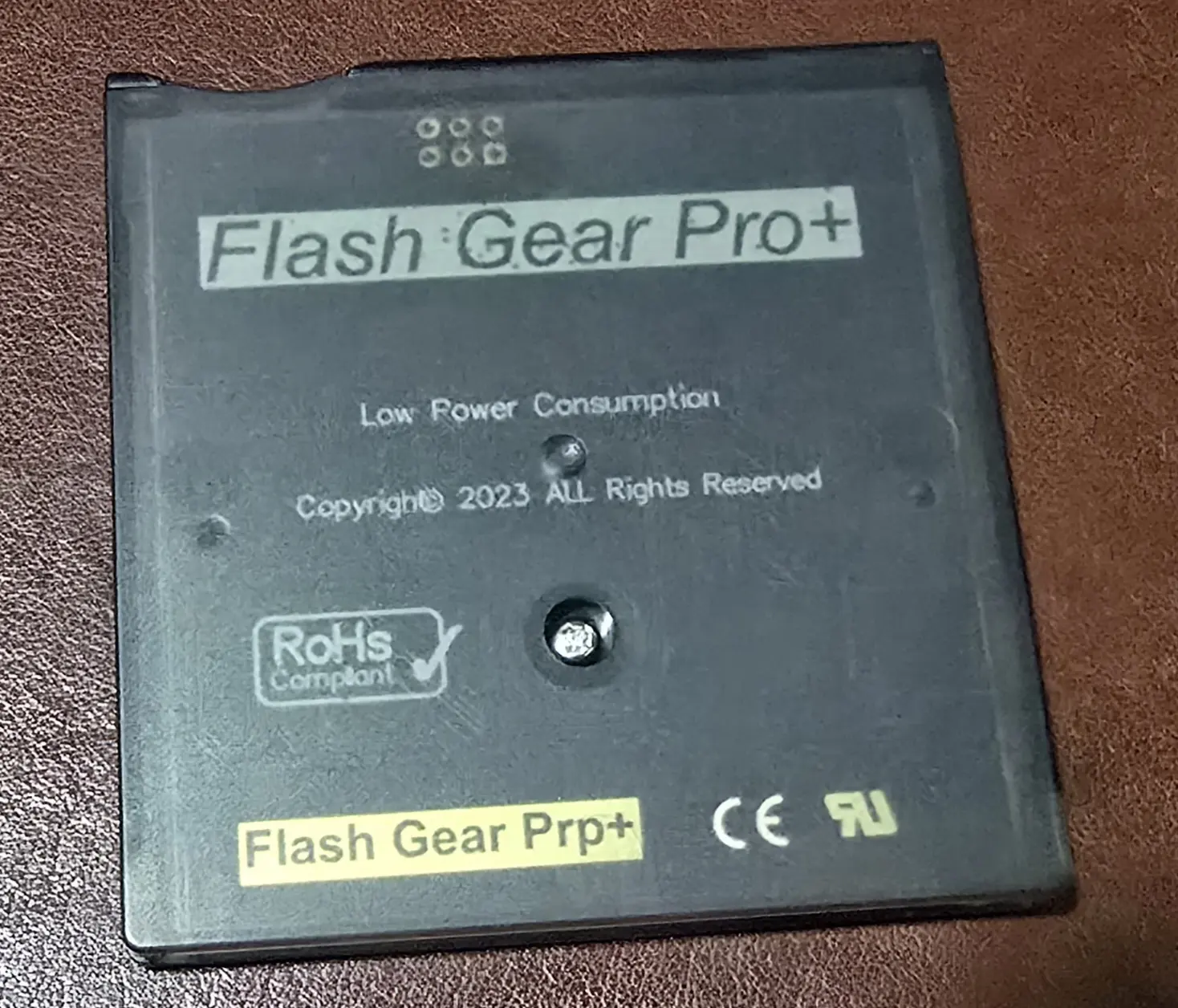

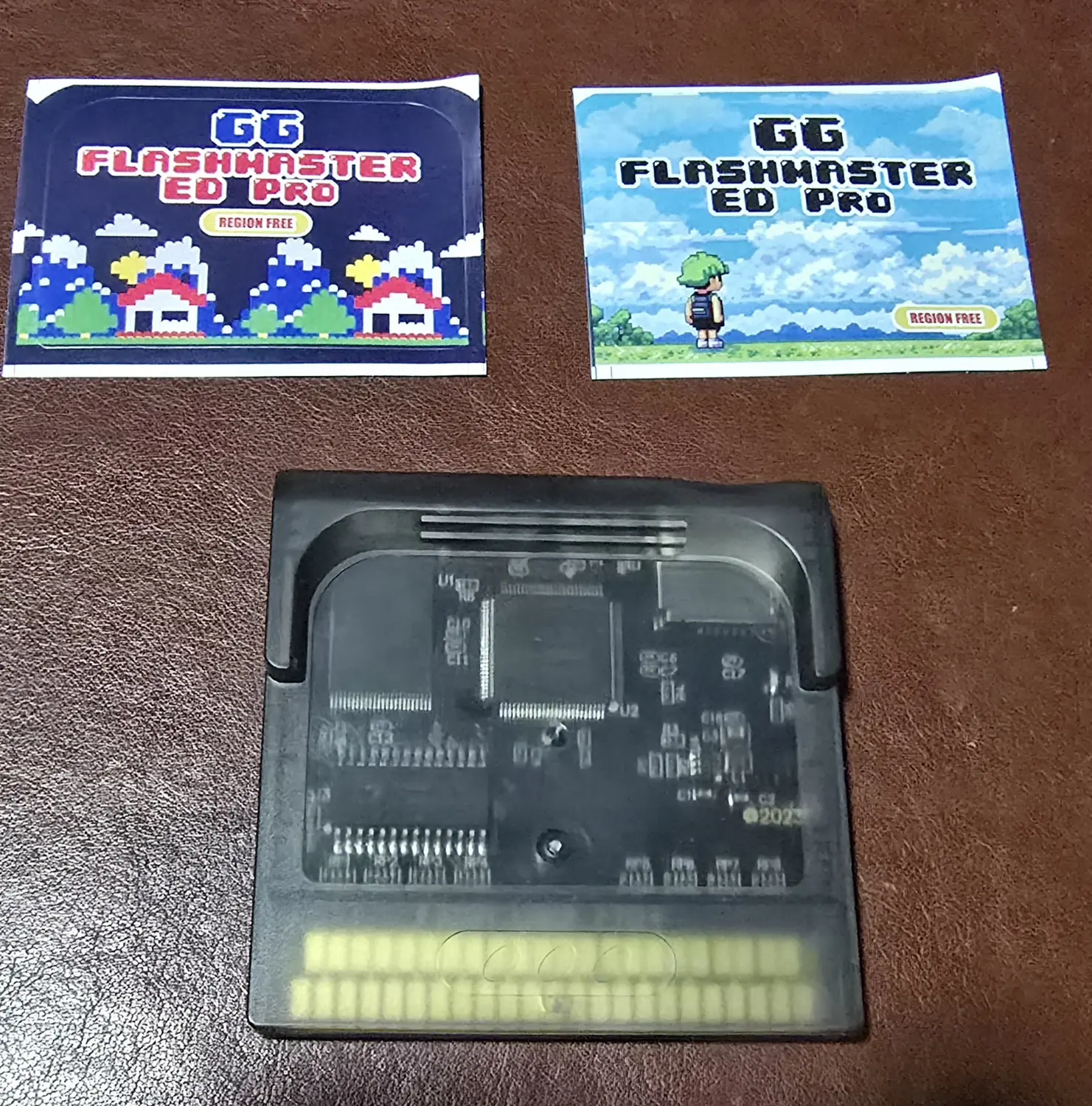

The included cart is a Flash Gear Pro+, a microSD flash cartridge that runs the Game Gear, Master System and SG-1000 libraries off a card. Amusingly it ships with two different label stickers, neither applied, so you get to pick the artwork or leave the shell bare and look at the board.

This is NOT a genuine Krikzz. Krikzz makes the original this is modeled on, and the closest equivalent is the EverDrive-GG X7 at around $145. What the genuine article gives you that this does not: save states, a polished menu, instant loading, official firmware and support, a warranty, and correct handling of the handful of EEPROM-save and video-mode-quirk titles. This cart has frozen firmware and no warranty. It is roughly a third of the price, it does the core job across the overwhelming majority of the library, and I test every one so you skip the AliExpress lottery. If the difference matters to you, buy the X7 from krikzz.com with my blessing.

It ships with a blank card. I do not preload or sell copyrighted ROMs. The included guide covers getting the free, community-made content yourself.

The gory details on what is not Sega’s

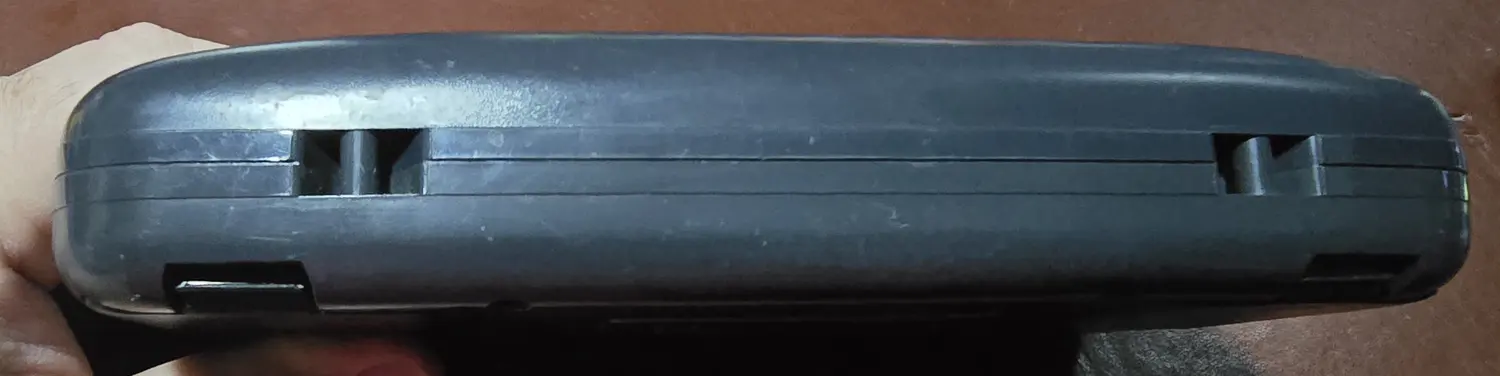

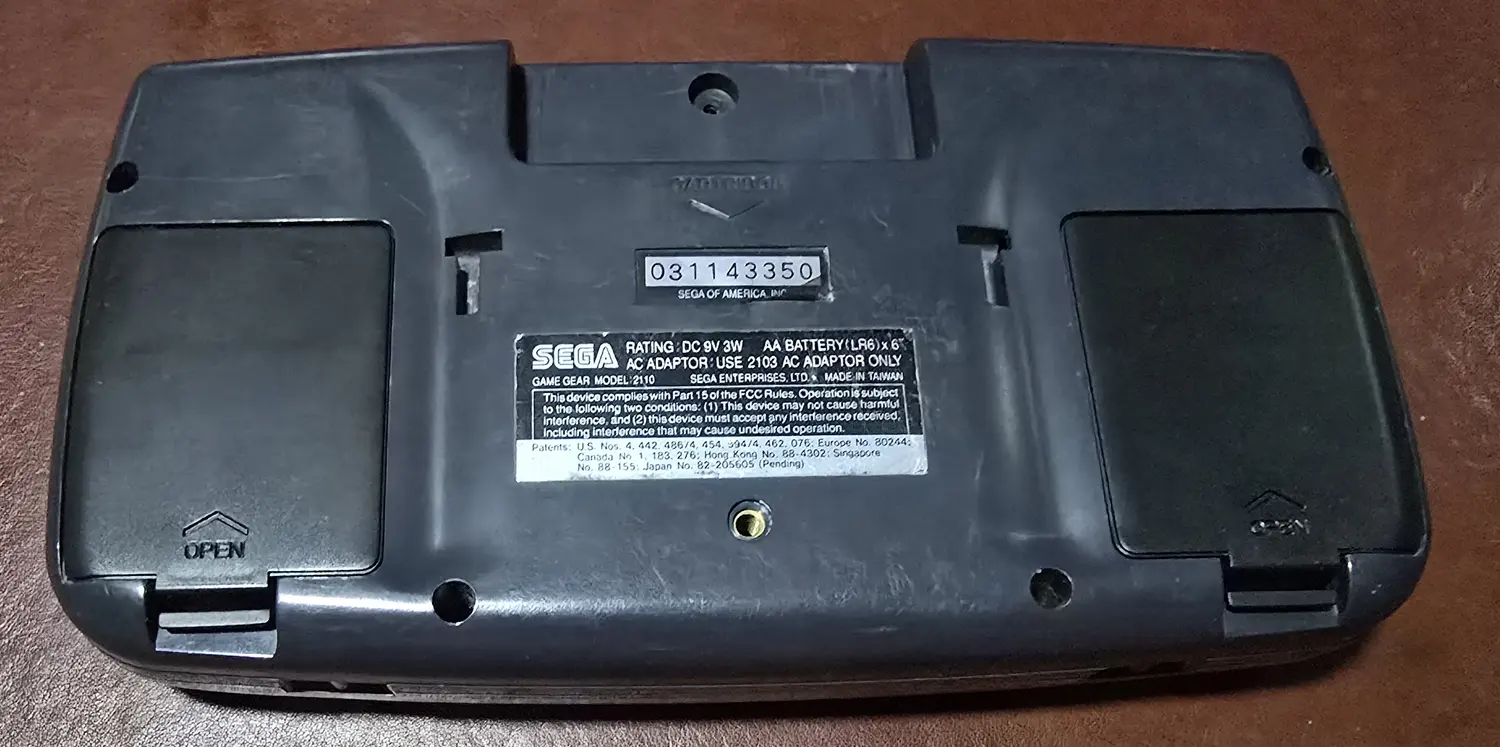

Three things on this console are not original Sega parts: the IPS screen, the RetroSix PowerCore power board, and both battery doors. The doors are aftermarket replacements, visible in photo 2.

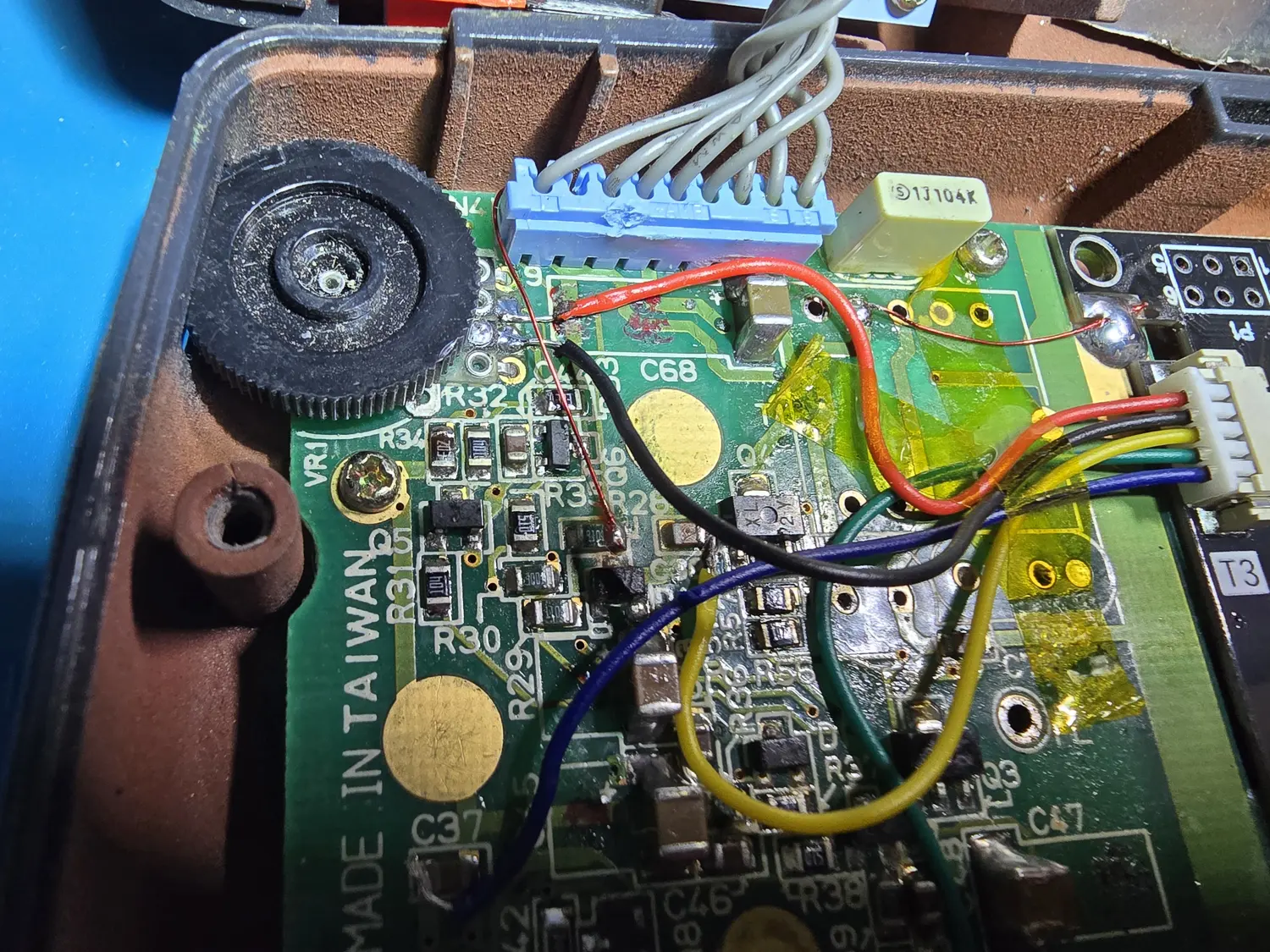

There are also two small hand-run wires on the main board that are not part of either kit’s harness. One crosses the SRAM, the other terminates near the op-amp. They are my own work from years ago, and I no longer have notes on what each one addressed. No function is claimed for either wire. The console tests fully working.

What I tested

Screen, sound through the speaker and the headphone jack, every button, the brightness and volume wheels, the cartridge slot, and the USB-C input, on both battery power and USB.

I do not bench-test these, I play them. A quick power-on tells you a console boots. It does not tell you that the d-pad still registers a diagonal in the middle of a jump, that button 1 does not need a second press when you are actually leaning on it, or that the sound holds up over an hour instead of a minute. So each of these gets played, with a real cartridge, for long enough to find the faults that only show up under use. Everything on that list works reliably, not marginally.

Condition, stated plainly

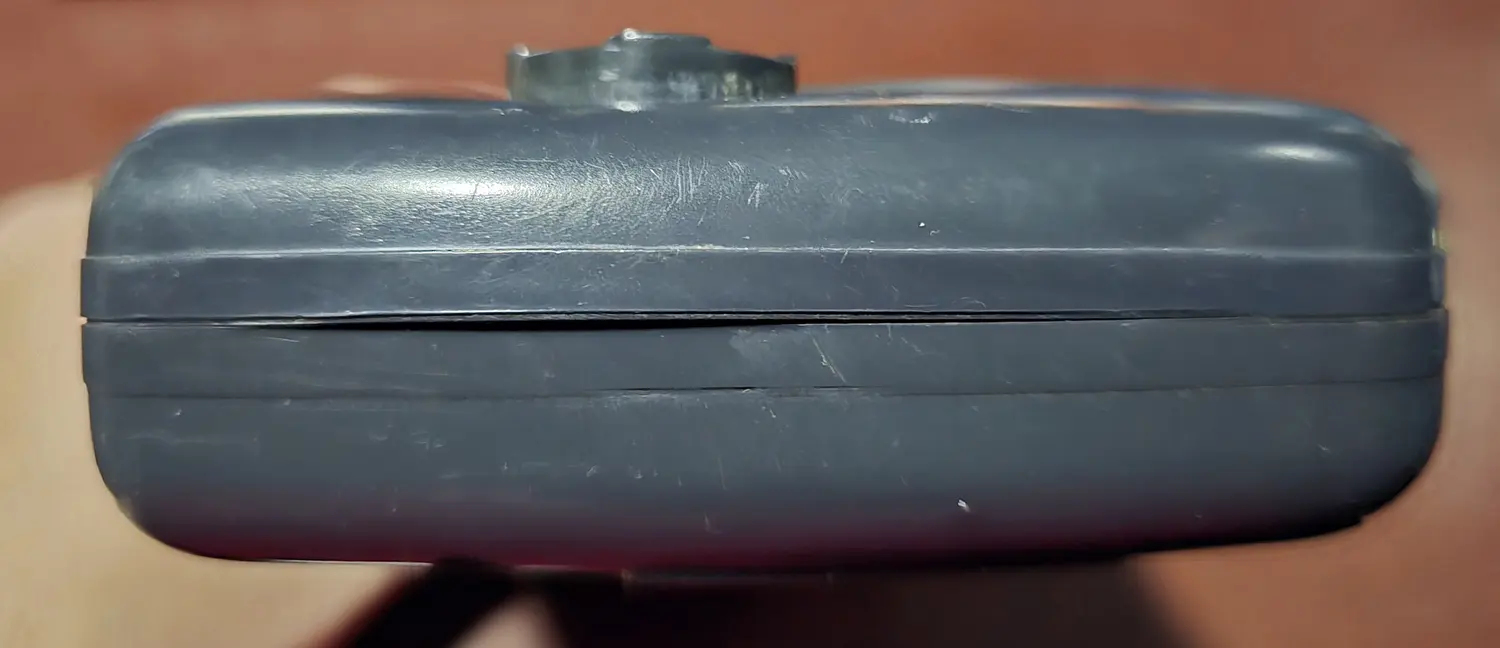

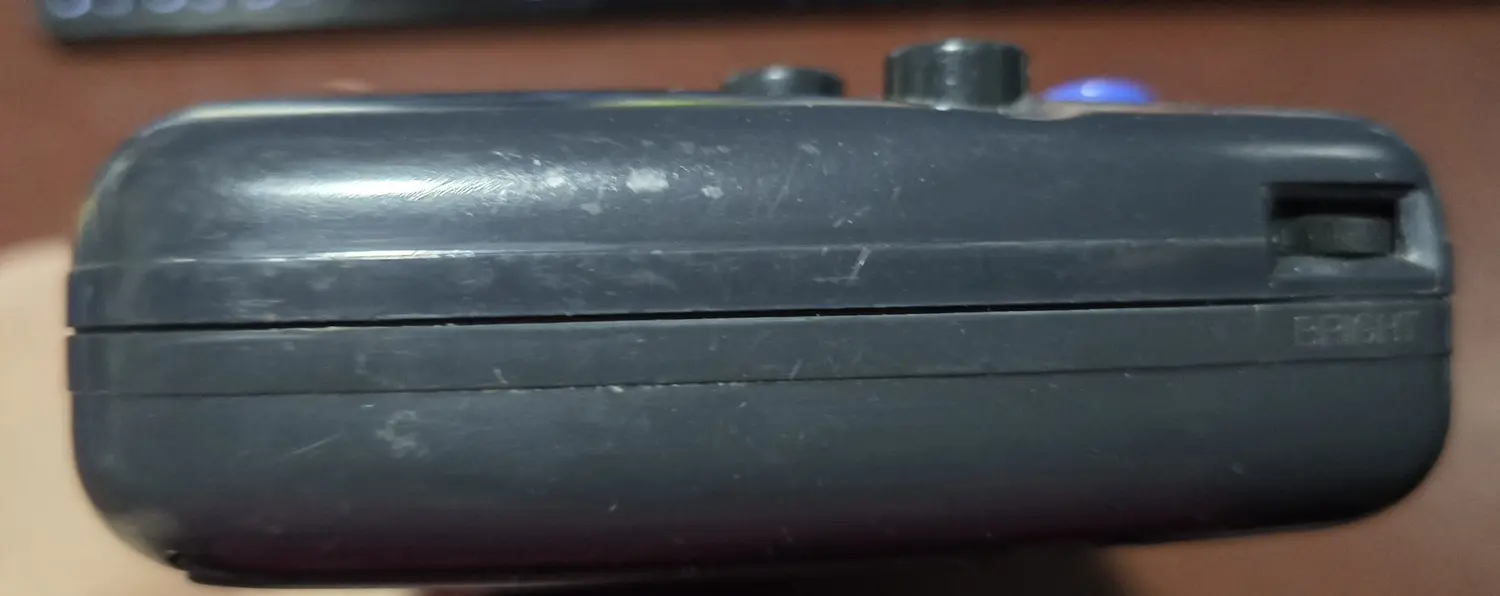

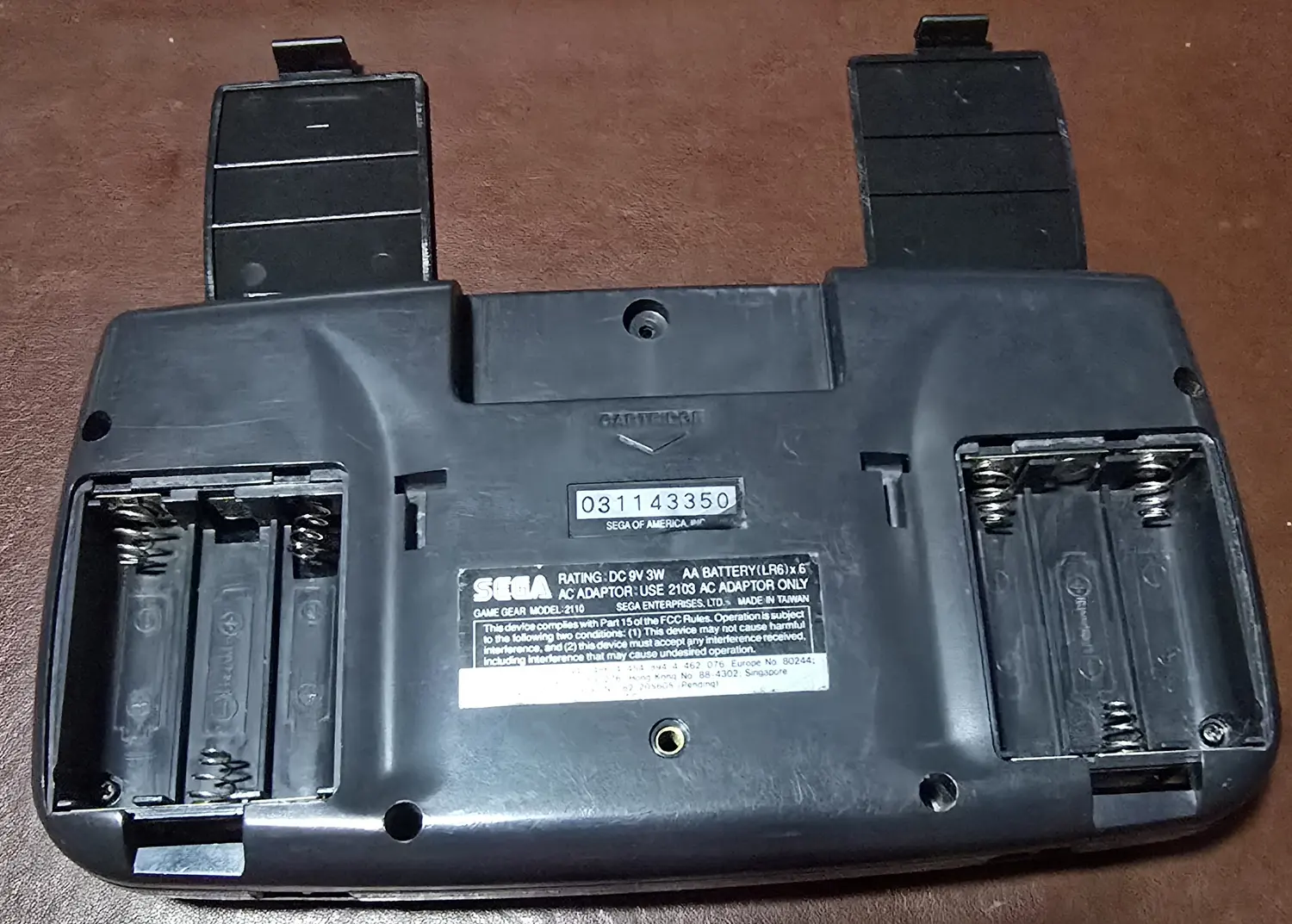

This is the most cosmetically worn of the Game Gears I have on the bench right now. The shell has scuffing and scratches, visible in the edge photos above, and both battery doors are aftermarket replacements rather than Sega originals. The battery contacts are clean.

It is a machine that has been used and then made better, not a shelf piece. Priced that way.

About the maker

I’m an electrical engineer and long-time hobbyist with a passion for vintage electronics, especially classic video games. The items I sell are projects from my personal workshop. Everything is guaranteed working on arrival and in the state described. Thanks for looking.
