USB-C 9V Power Adapter for Sega Game Gear, Genesis 2, 32X, Nomad & CD2

Power your Sega Game Gear (and the center-positive Sega family) with modern USB-C — no PD required

Retire the long-dead battery pack and the impossible-to-find original brick. This is a brand-new, custom-built power adapter that lets you run your Sega Game Gear — and the rest of the center-positive Sega family — from almost any modern USB power source. As a fellow enthusiast, I designed this one to be the polished, foolproof way to keep these power-hungry handhelds and consoles alive.

Transparency matters to me, so here’s exactly what you’re getting: these adapters are hand-built in small batches to one consistent spec, so the photos are representative of what will arrive — same components, same enclosure, same build, same testing, unit to unit. The only thing that varies is cable length (about 6 to 18 inches, depending on the barrel jack I have on hand); if you need a particular length, just ask before ordering. Your satisfaction is what matters most to me, and I’m always glad to answer questions before or after a sale.

What’s included

• One (1) custom-built, enclosed USB-C 9V power adapter for the Sega Game Gear family.
• Adapter only. This does not include a USB-C power brick, a USB-C cable, or a console.

The modern power solution — and why it’s better

The Game Gear and its Sega siblings were designed around a ~10V supply (6 AA batteries land near 9V), and they are notoriously power-hungry. Instead of relying on a fussy USB Power Delivery (PD) negotiation, this adapter contains an efficient onboard boost converter that takes a standard 5V USB input and steps it up to a clean, regulated 9V — squarely in the range these systems were built to run on.

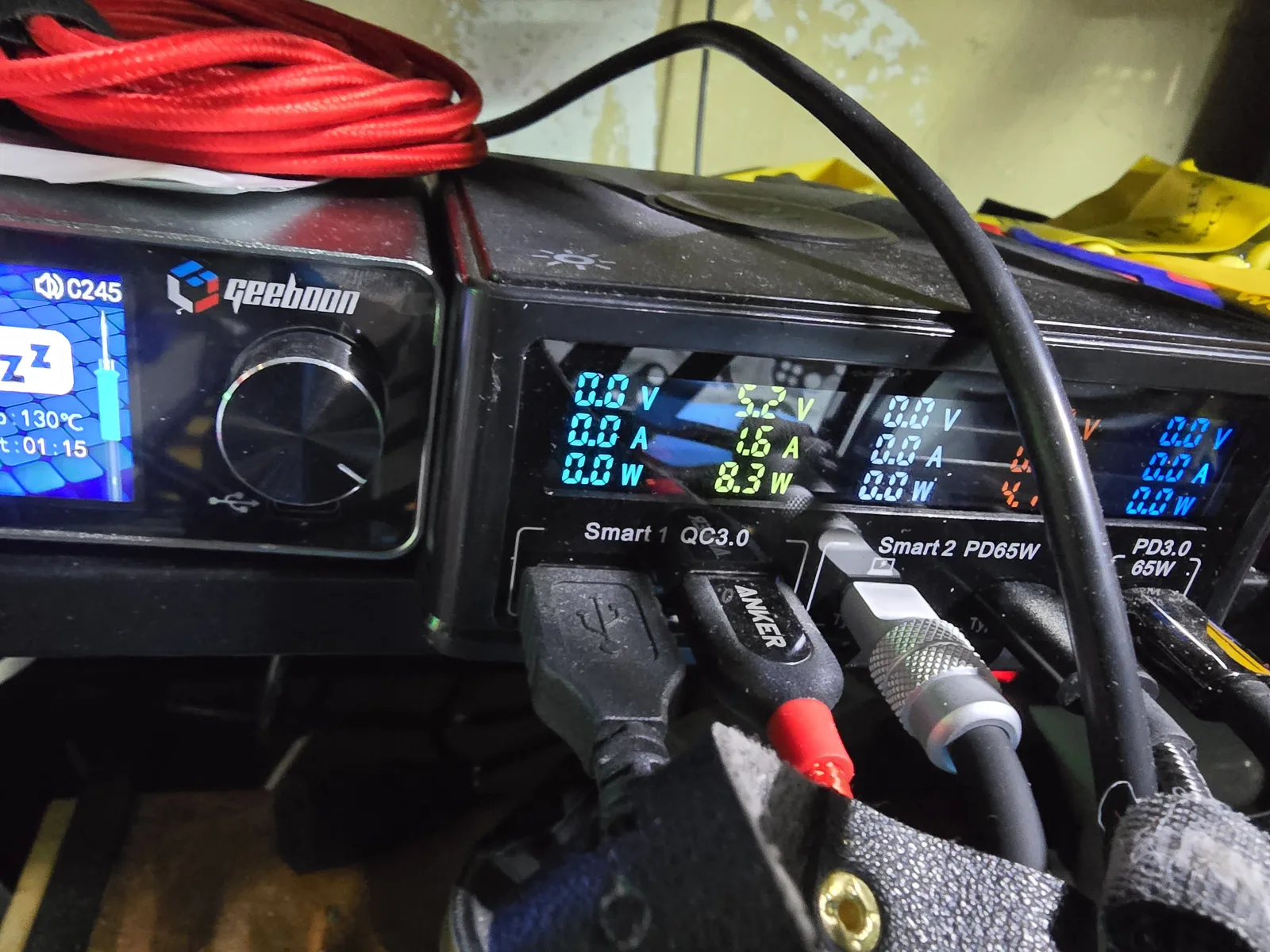

Because it only needs 5V in, it runs on practically anything: phone chargers, laptops, power banks, car ports, and plain “dumb” USB-A bricks. No PD handshake, no compatibility roulette. (If you specifically want the lower-cost version that uses a PD trigger instead of a boost converter, see the “Lite” listing — it needs a USB-C PD charger that can output 9V.)

Built and tested by hand

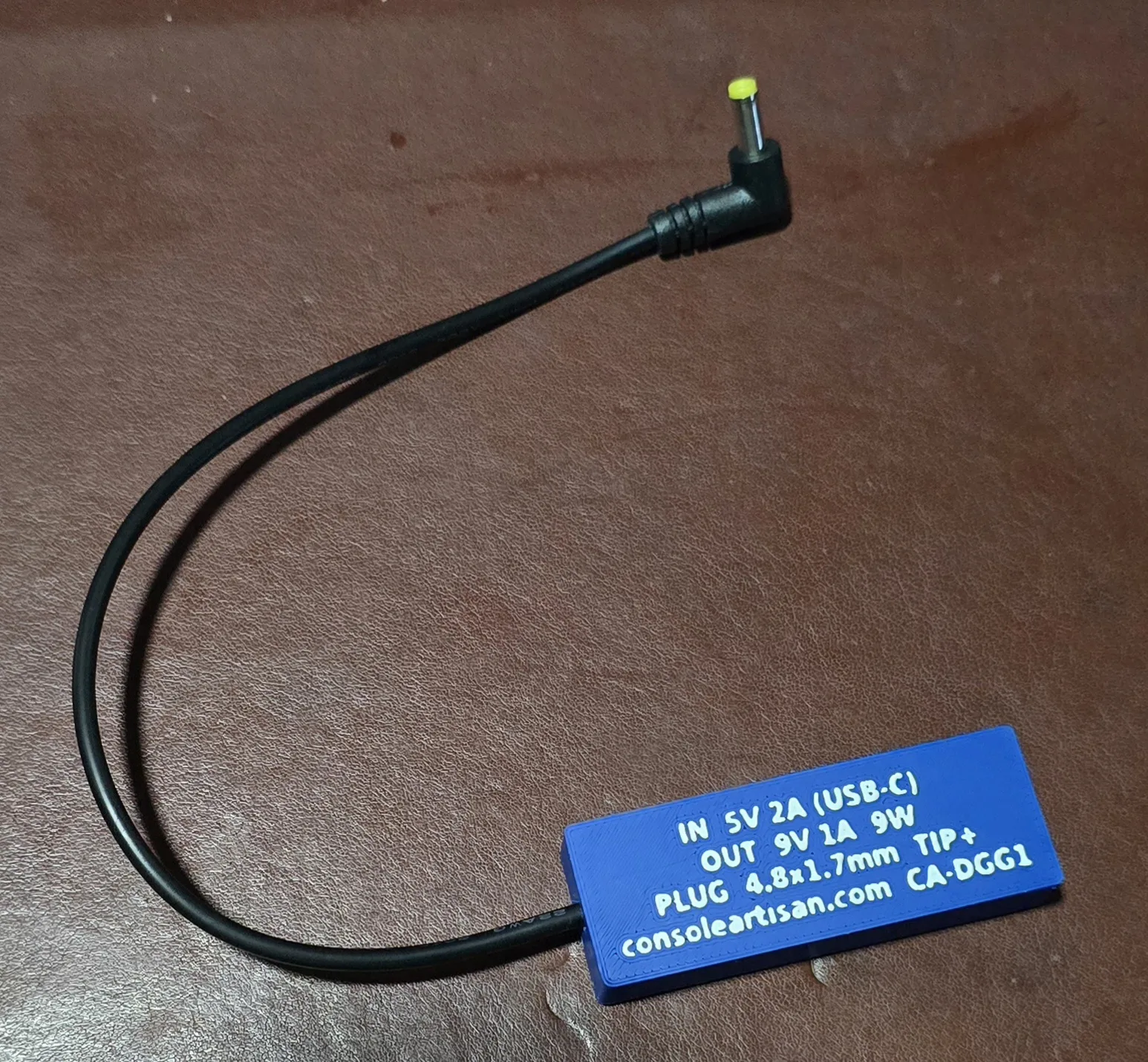

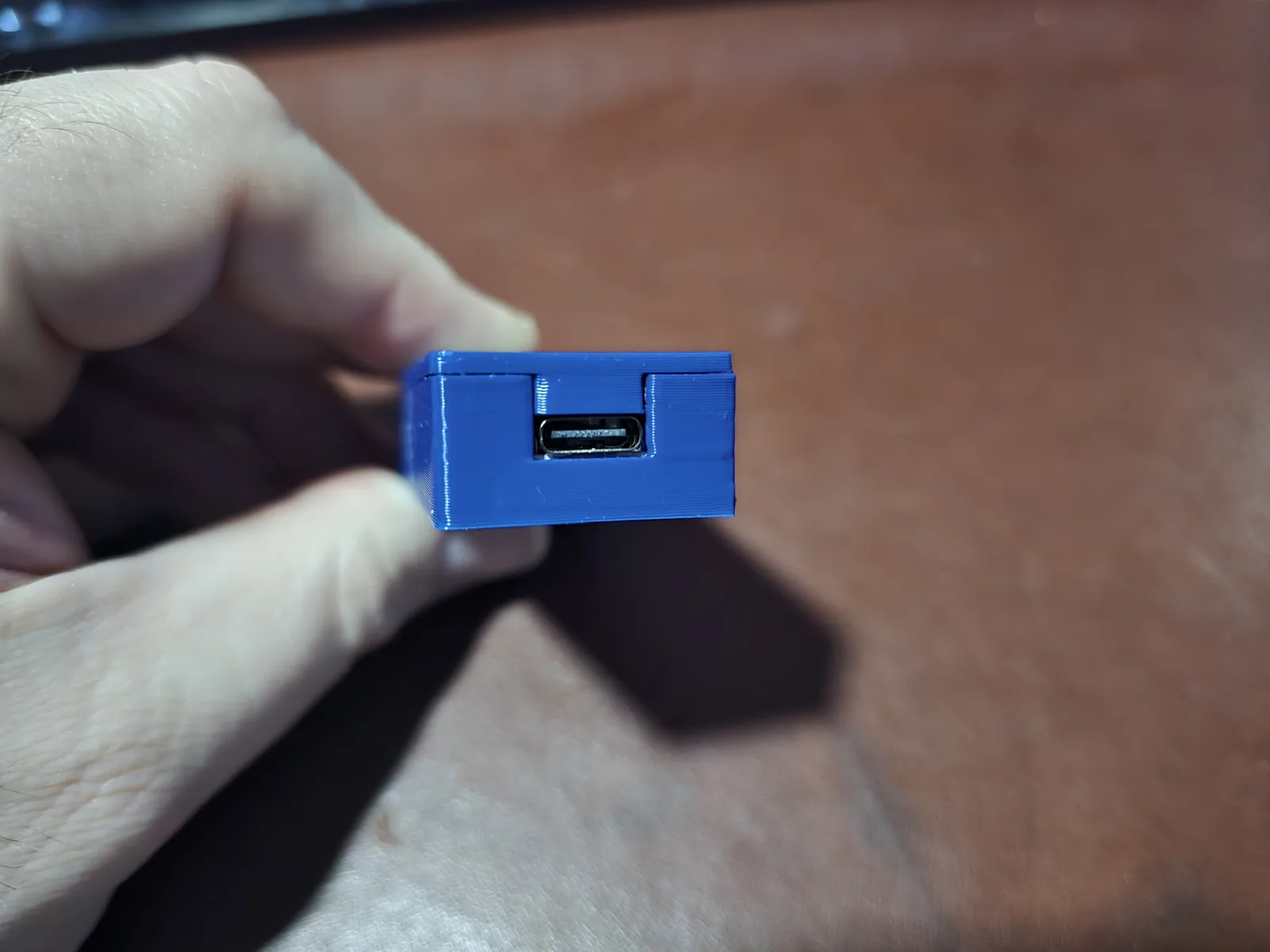

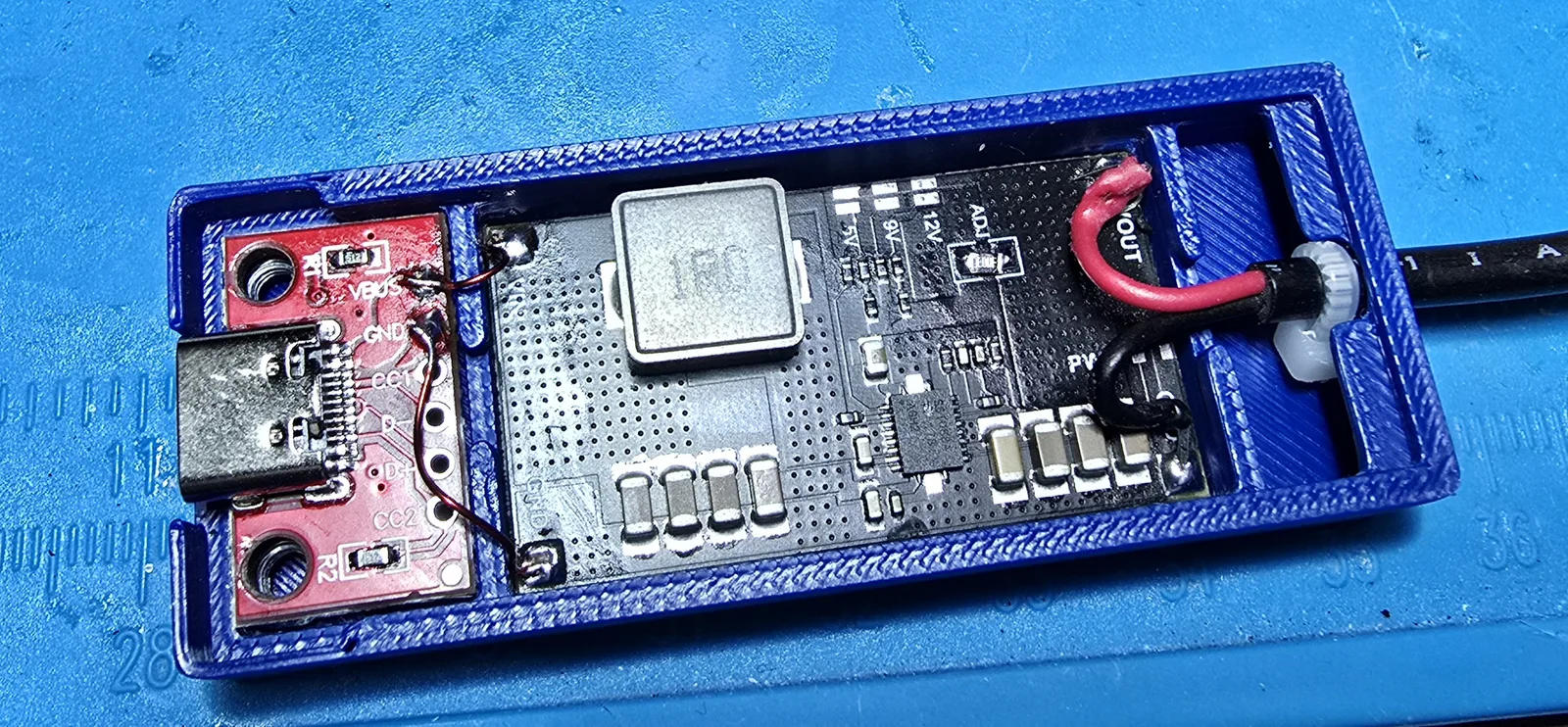

• Enclosed and labeled. A case 3D-printed in commercial-grade ASA — a UV-stable plastic that won’t yellow or get brittle — with captive nuts holds everything together, clearly marked with voltage and polarity — it looks and feels like a finished product, not a hand-wrapped cable.

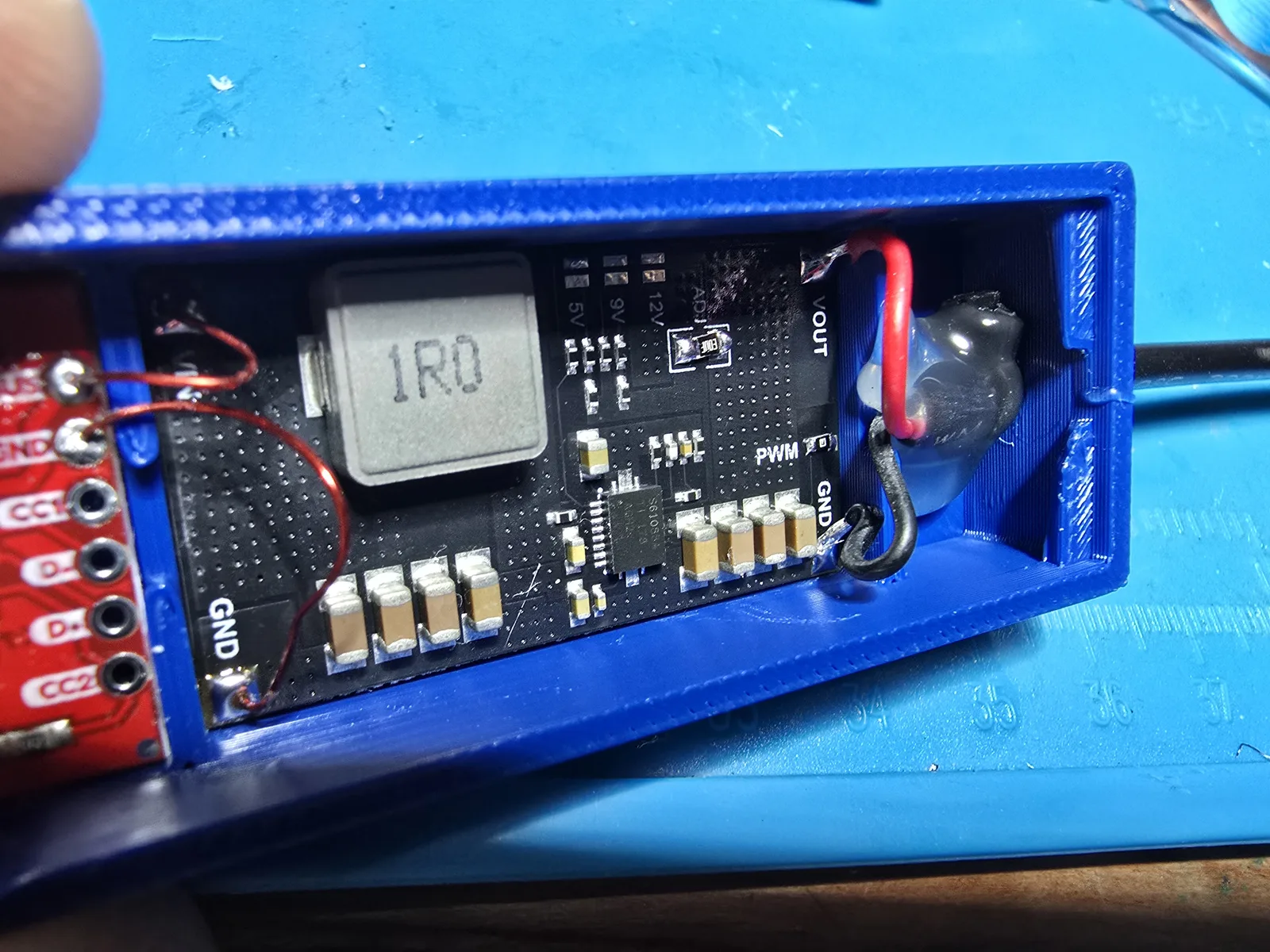

• Foolproof internal strain relief so the solder joints never take a pull.
• Runs cool. The synchronous boost converter is highly efficient, so the board stays barely above room temperature under load.

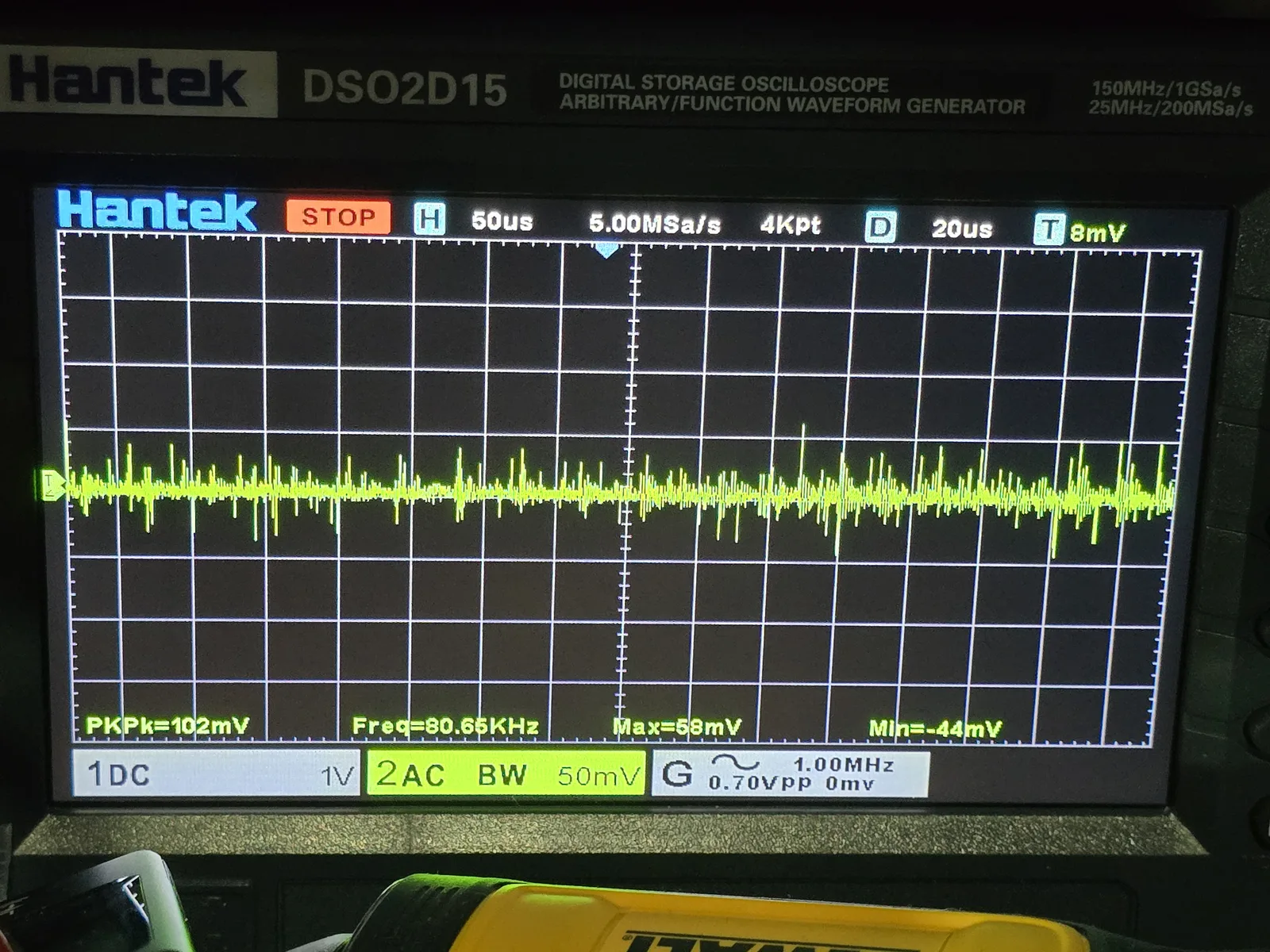

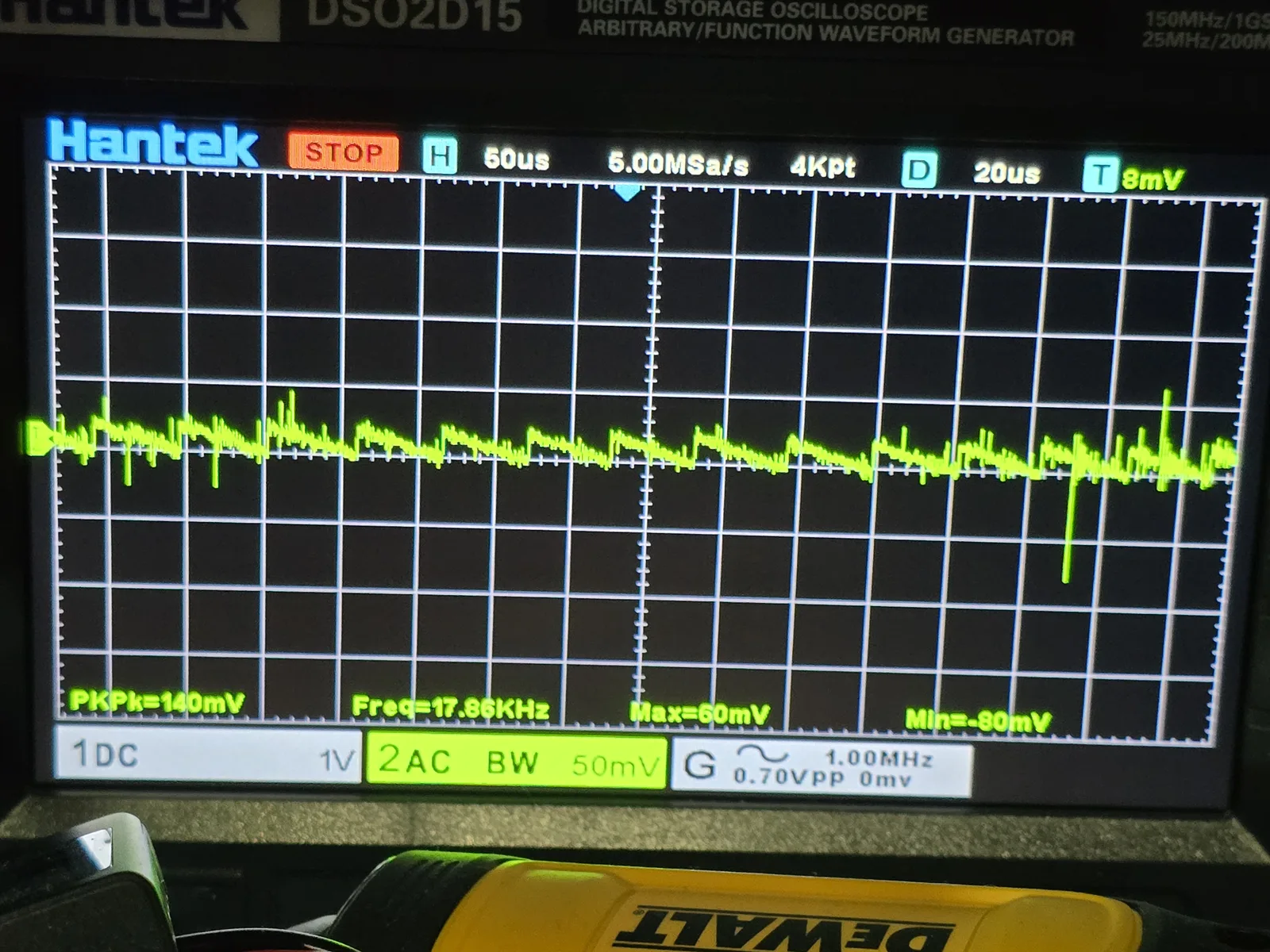

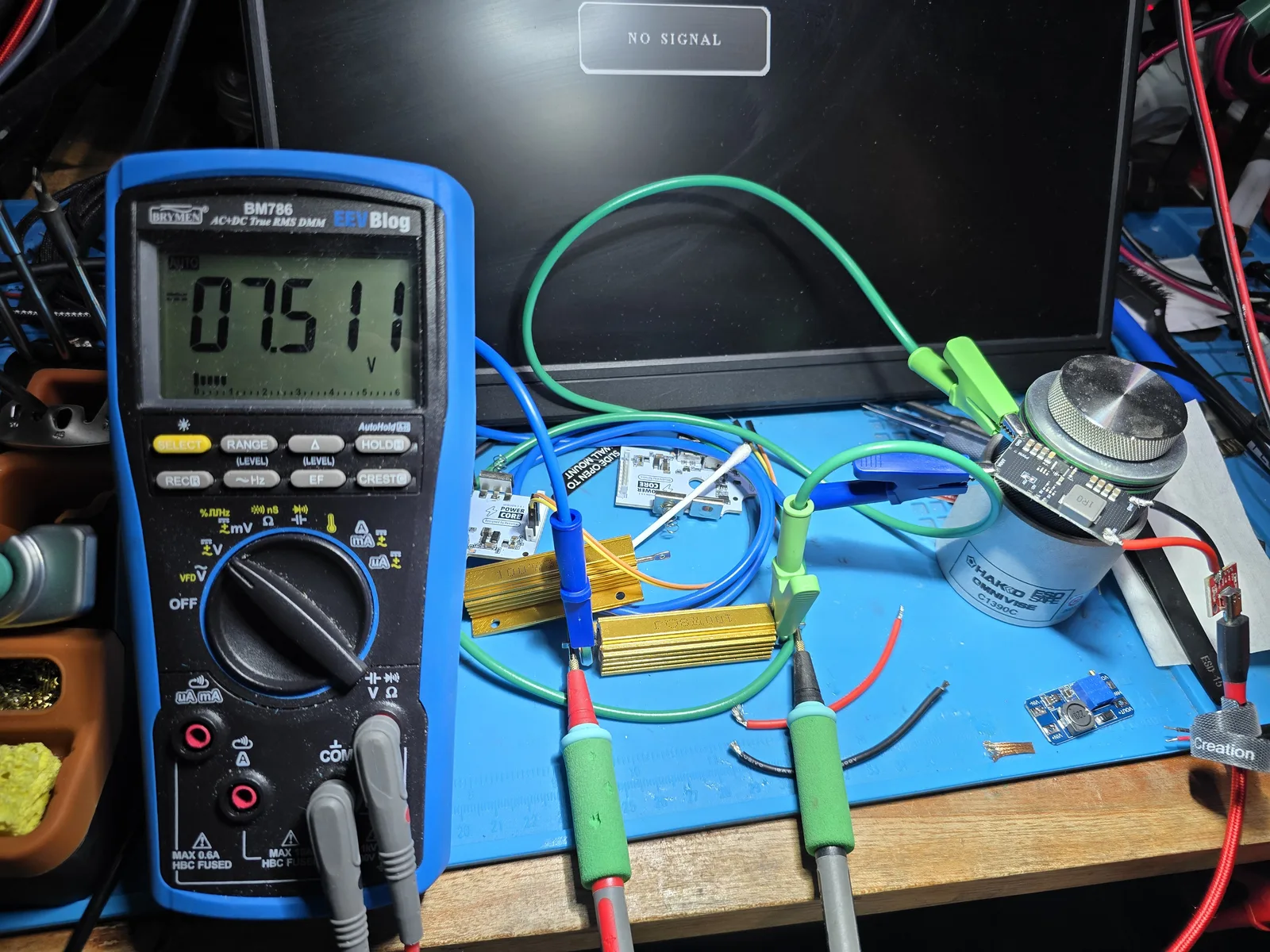

• Verified on the bench. I validate each design under full load and for ripple; every unit then gets a final output-voltage check before it ships.

Compatibility

Uses a center-positive, right-angle 4.8 x 1.7 mm barrel jack (EIAJ-03), confirmed to work with:

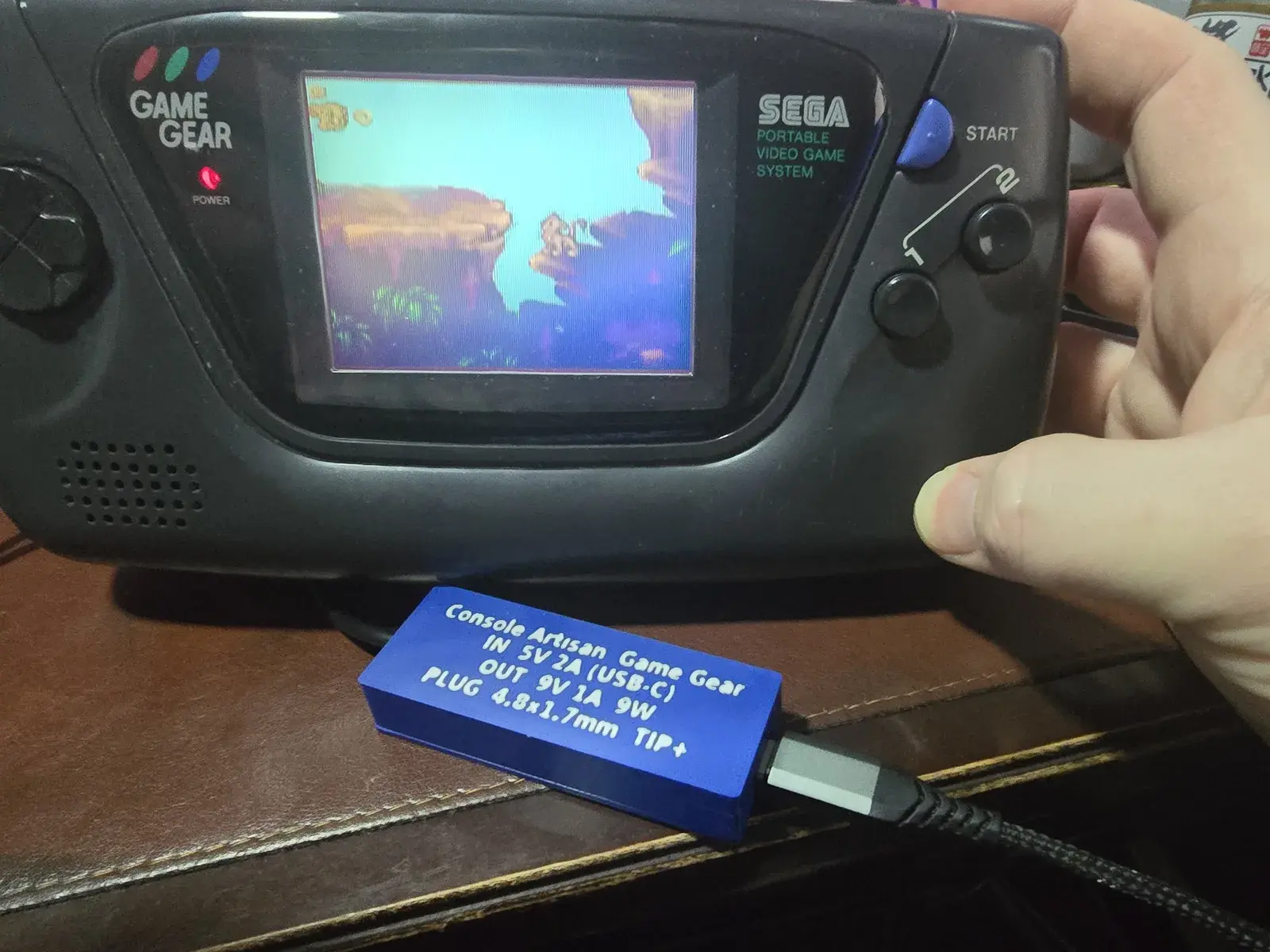

• Sega Game Gear
• Sega Genesis / Mega Drive (Model 2)
• Sega 32X

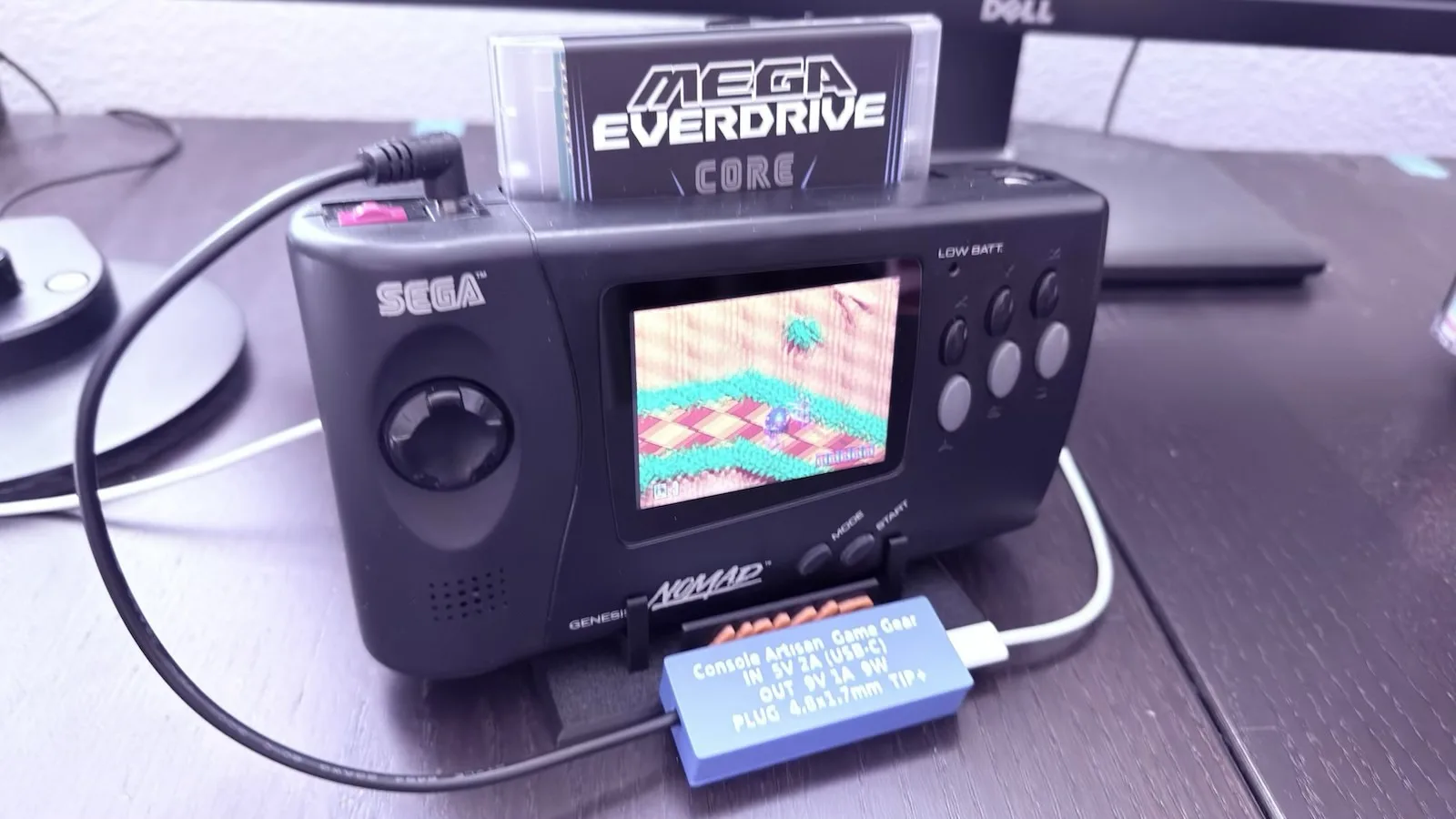

• Sega Nomad
• Sega CD (Model 2)
• Sega CDX / X’Eye

Please note: this adapter is not for the Sega Genesis Model 1 or the Sega CD Model 1. Those use the opposite polarity (center-negative) and a different plug; powering them with this adapter could damage them. The labeled enclosure is there specifically to prevent that mixup.

An excellent troubleshooting step

Seeing rolling lines in the video or a hum in the audio from your Game Gear? Those symptoms are often caused by aging power circuitry or a marginal power source. Feeding the console clean, correct, regulated voltage is a great first step: if the issues clear up, your old power source was the culprit; if they persist, it is a strong sign the console itself needs internal servicing (these units are well known for needing a re-cap).

Custom orders & bulk pricing

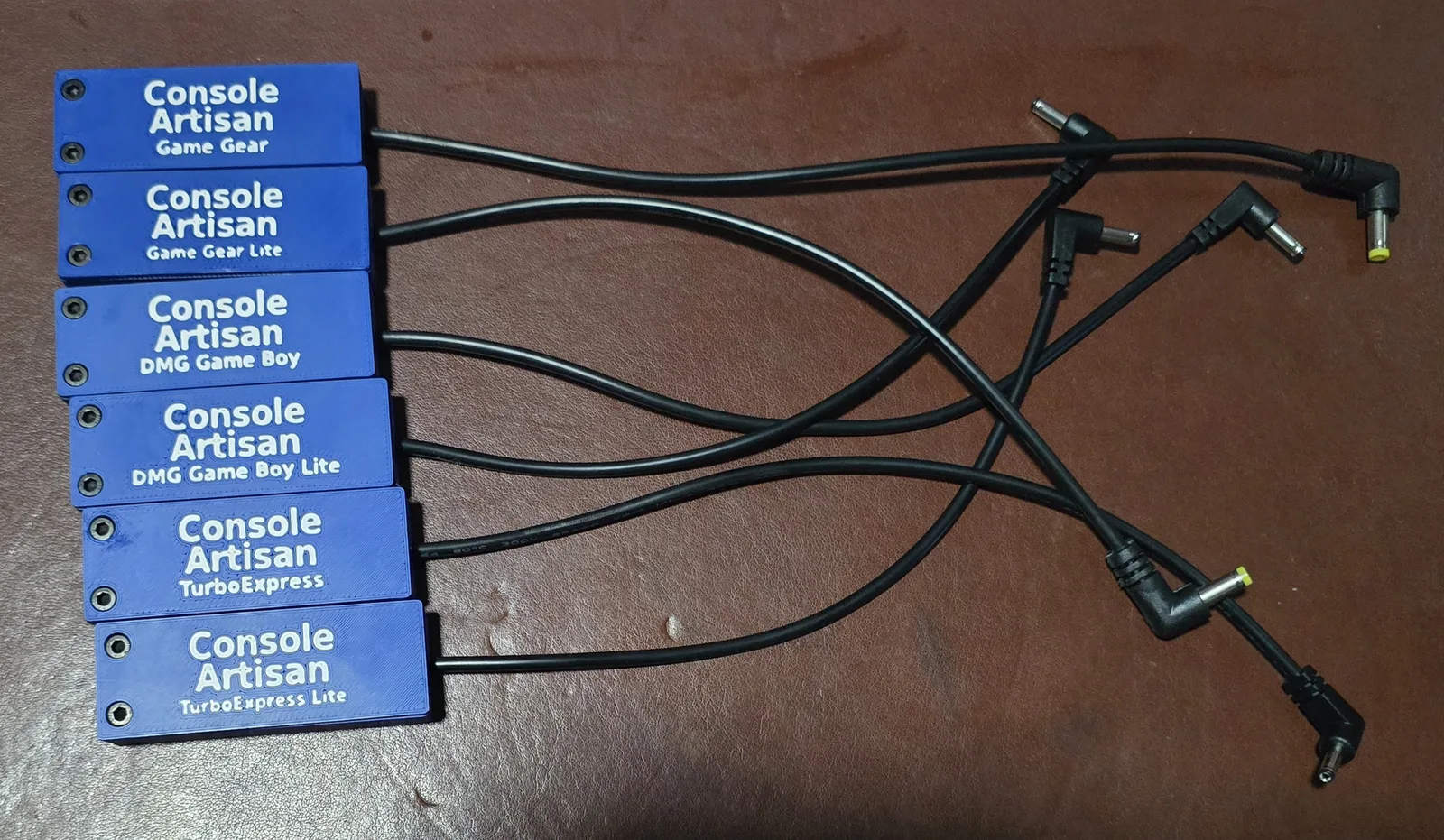

Buying more than one? Get 15% off when you buy two or more — mix and match any of my dongles — and they ship together, so you save on shipping too. Need a larger quantity or a custom build? Send a message — I can accommodate specific cable lengths, different barrel sizes or polarities, and other output voltages (5V, 7.5V, 9V, 12V, 15V, or 20V).

About the maker

I’m an electrical engineer and long-time hobbyist with a passion for vintage electronics, especially classic video games. The items I sell are projects from my personal workshop. All items are guaranteed working on arrival and in the state described. Thanks for looking.
