USB-C PD 9V Power Adapter for Sega Game Gear (North America), Genesis 2, 32X & Nomad (Lite)

Power your Sega Game Gear (and the center-positive Sega family) with modern USB-C PD

Retire the long-dead battery pack and the impossible-to-find original brick. This is a brand-new, custom-built power adapter that lets you run your Sega Game Gear (and the rest of the center-positive Sega family) from a modern USB-C Power Delivery (PD) charger or power bank. This is the budget “Lite” version: it uses a small PD trigger chip rather than the active boost converter found in the standard model, which keeps the price down.

Transparency matters to me, so here’s exactly what you’re getting: these adapters are hand-built in small batches to one consistent spec, so the photos are representative of what will arrive: same components, same enclosure, same build, same testing, unit to unit. The only thing that varies is cable length (about 6 to 18 inches, depending on the barrel jack I have on hand); if you need a particular length, just ask before ordering. Your satisfaction is what matters most to me, and I’m always glad to answer questions before or after a sale.

What’s included

• One (1) custom-built, enclosed USB-C PD 9V power adapter (Lite) for the Sega Game Gear family.
• Adapter only. This does not include a USB-C power brick, a USB-C cable, or a console.

How it works, and how it differs from the standard version

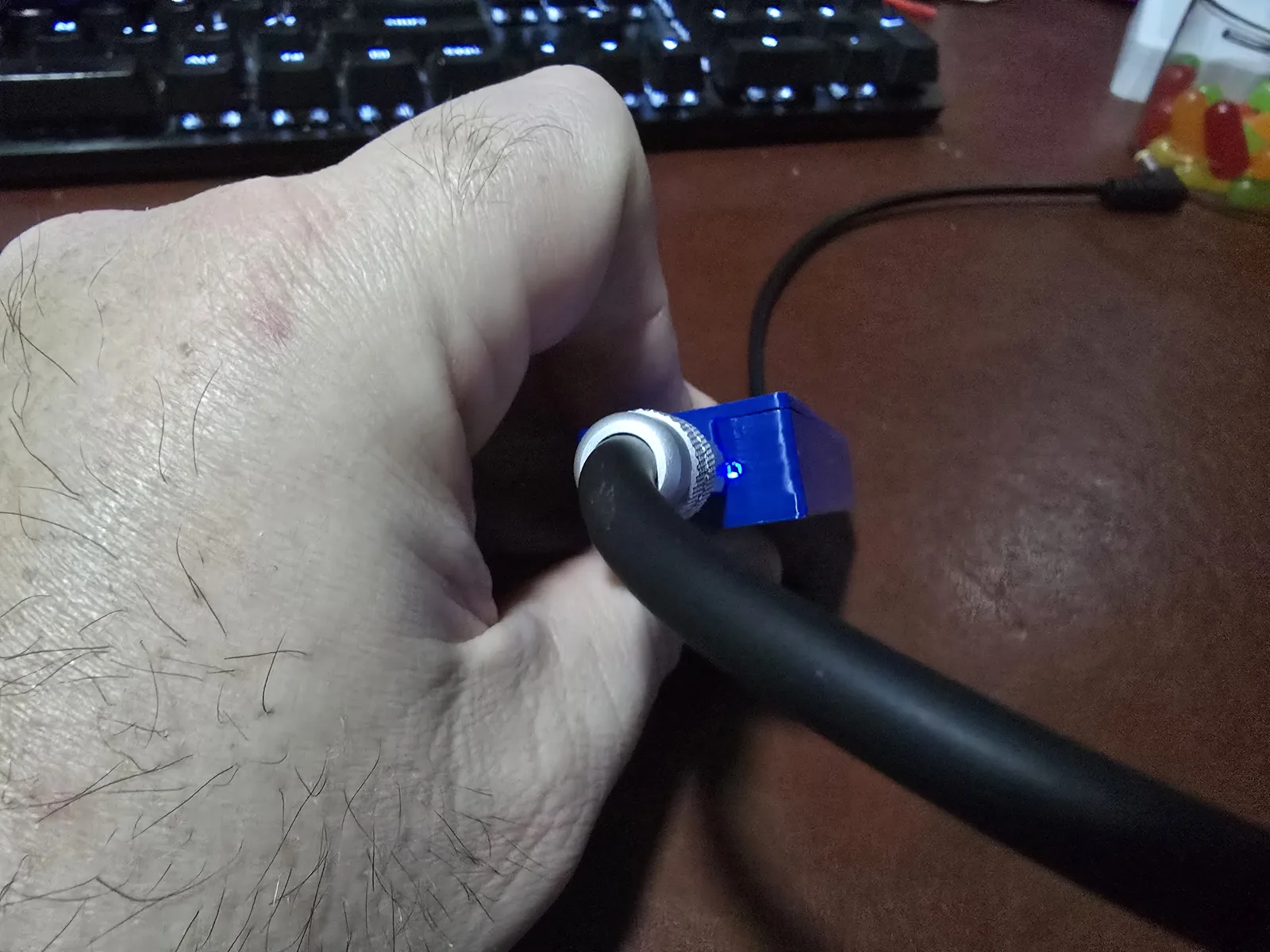

This adapter contains a USB-C Power Delivery (PD) trigger that asks your charger for the 9V the Sega family wants, and a small status LED that lights up once it has successfully negotiated 9V, an at-a-glance confirmation that everything is working.

• You need a real USB-C PD source. A wall charger or power bank that can output 9V over USB-C PD. A standard 5V USB port, or a “dumb” USB-A to USB-C cable, will not work. If the status LED does not light, your charger or cable is not delivering 9V. Try a known-good PD charger and a quality USB-C-to-USB-C cable (60W/100W or E-marked cables are a safe bet).
• A note on very strict chargers. This works with the large majority of USB-C PD chargers and power banks. A few unusually strict chargers (some Apple laptop chargers and certain premium GaN units) police PD aggressively and may refuse to hold the 9V contract (the LED won’t light). If that happens, use a different, more permissive charger. If you want guaranteed compatibility with any USB source (including those strict chargers, plain 5V ports, and dumb USB-A bricks), choose the standard (non-Lite) version, which boosts from 5V and needs no PD at all.
• Note on multi-port chargers: many multi-port chargers briefly cut power to all ports when another device is plugged in or removed. Avoid hot-swapping other devices while your console is running.

Built and tested by hand

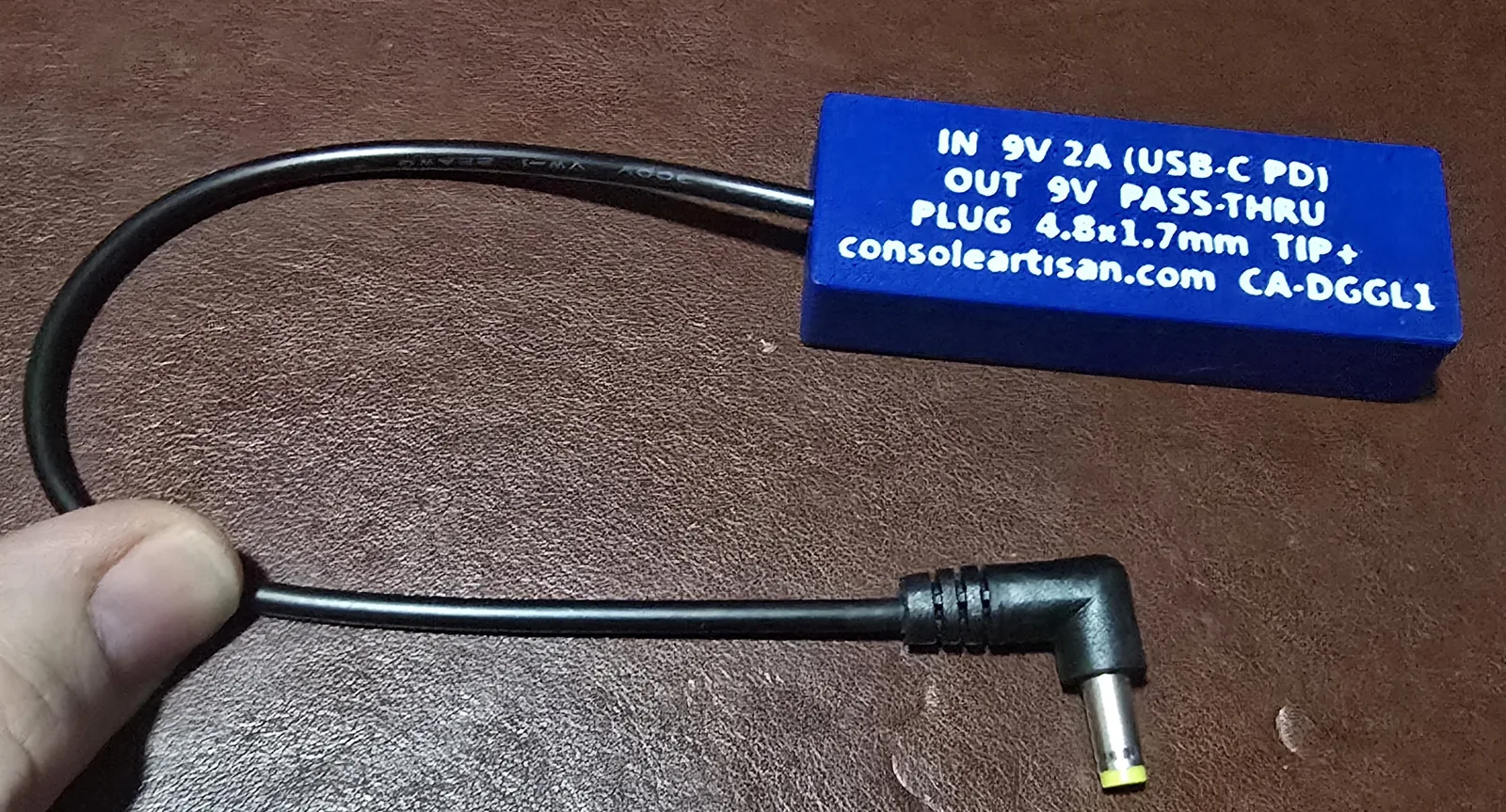

• Enclosed and labeled. A case 3D-printed in commercial-grade ASA (a UV-stable plastic that won’t yellow or get brittle) with captive nuts holds everything together, clearly marked with voltage and polarity.

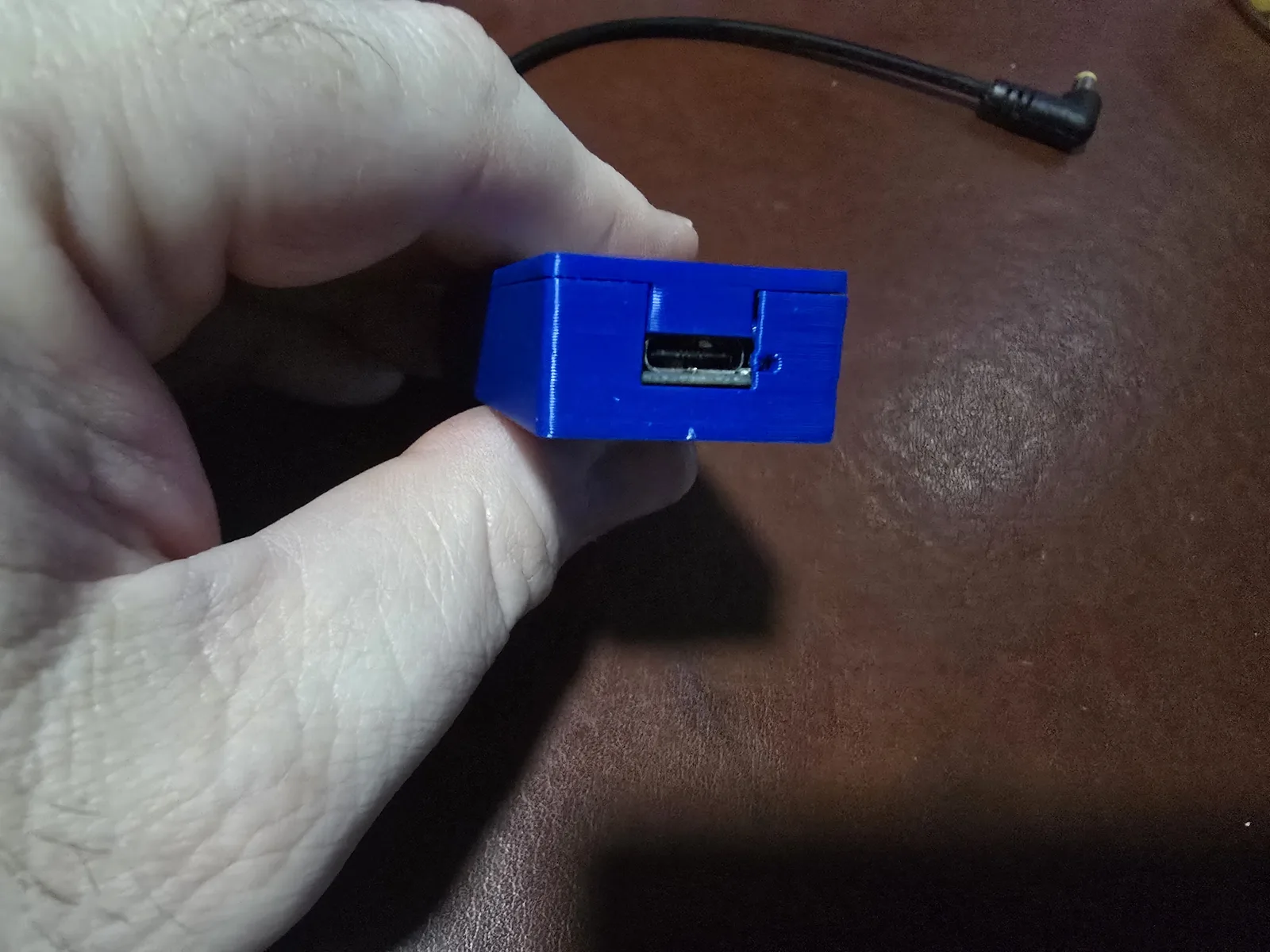

• PD-status LED for instant confirmation of a good 9V contract.
• Foolproof internal strain relief so the solder joints never take a pull.
• Verified on the bench. Each design is proven on real hardware; every unit gets a final output-voltage check before it ships.

Compatibility

Uses a center-positive, right-angle 4.8 x 1.7 mm barrel jack (EIAJ-03), confirmed to work with:

• Sega Game Gear: North American units only (see below)
• Sega Genesis / Mega Drive (Model 2)
• Sega 32X
• Sega Nomad
• Sega CDX / X’Eye

Game Gear owners: check your region

Sega wired the Game Gear’s DC jack differently depending on the mains region the console was sold into, and it is not the NTSC/PAL split people expect: Japan is NTSC but wires like Europe. This adapter is built for North American machines:

The two barrel sizes are different, so a European or Japanese Game Gear will not physically accept this plug: you cannot damage one by mistake, it simply will not go in. If you have a European or Japanese Game Gear, message me and I will build you the correct one. It is the same converter with the polarity reversed and the larger plug fitted, and I am happy to make them to order.

Please note: this adapter is not for the Sega Genesis Model 1 or for either Sega CD (Model 1 or Model 2). Those use the opposite polarity (center-negative) on a larger 5.5 x 2.1 mm barrel: they take the Genesis Model 1 style supply, not this one. The labeled enclosure is there specifically to prevent that mixup.

Custom orders

Need a larger quantity or a custom build? Send a message. I can accommodate specific cable lengths, different barrel sizes or polarities, and other output voltages.

About the maker

I’m an electrical engineer and long-time hobbyist with a passion for vintage electronics, especially classic video games. The items I sell are projects from my personal workshop. All items are guaranteed working on arrival and in the state described. Thanks for looking.
