USB-C PD 9V Power Adapter for NEC TurboExpress & PC Engine GT (Lite)

Power your NEC TurboExpress or PC Engine GT with modern USB-C PD

Retire the long-dead battery pack and the impossible-to-find original power brick. This is a brand-new, custom-built power adapter that lets you run your NEC TurboExpress (or its Japanese twin, the PC Engine GT) from a modern USB-C Power Delivery (PD) charger or power bank. This is the budget “Lite” version: it uses a small PD trigger chip rather than the active boost converter found in the standard model, which keeps the price down.

It feeds the console 9V — within the TurboExpress’s tolerance and the same voltage a fresh set of six AA batteries delivers. (The standard, non-Lite version instead boosts to the exact factory-spec 7.5V and works on any USB source — see that listing if you want the most accurate voltage and the widest source compatibility.)

Transparency matters to me, so here’s exactly what you’re getting: these adapters are hand-built in small batches to one consistent spec, so the photos are representative of what will arrive — same components, same enclosure, same build, same testing, unit to unit. The only thing that varies is cable length (about 6 to 18 inches, depending on the barrel jack I have on hand); if you need a particular length, just ask before ordering. Your satisfaction is what matters most to me, and I’m always glad to answer questions before or after a sale.

What’s included

• One (1) custom-built, enclosed USB-C PD 9V power adapter (Lite) for the NEC TurboExpress / PC Engine GT.
• Adapter only. This does not include a USB-C power brick, a USB-C cable, or a console.

How it works — and how it differs from the standard version

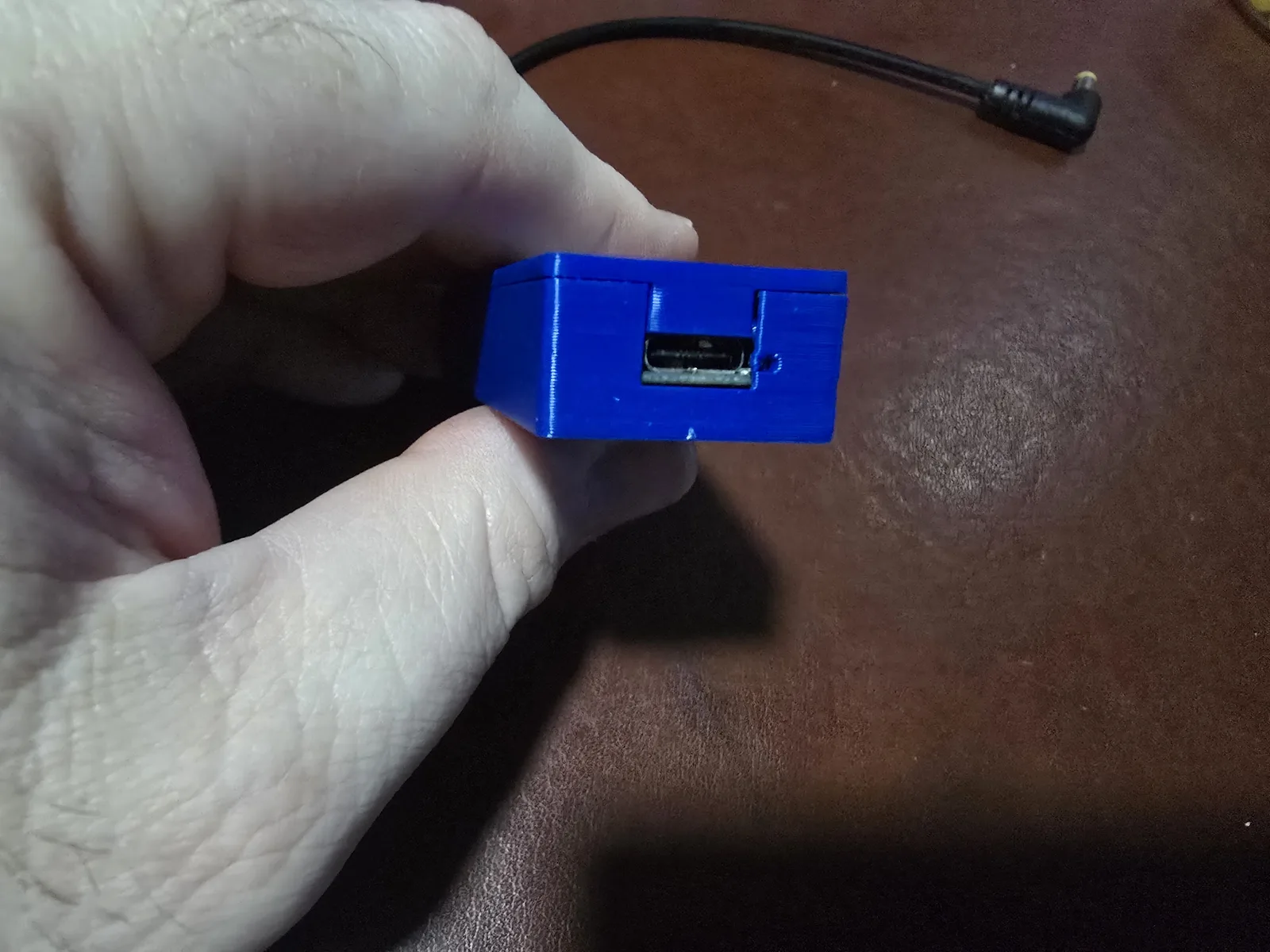

This adapter contains a USB-C Power Delivery (PD) trigger that asks your charger for 9V, plus a small status LED that lights once it has successfully negotiated — an at-a-glance confirmation that everything is working.

• You need a real USB-C PD source. A wall charger or power bank that can output 9V over USB-C PD. A standard 5V USB port, or a “dumb” USB-A to USB-C cable, will not work. If the status LED does not light, your charger or cable is not delivering 9V — try a known-good PD charger and a quality USB-C-to-USB-C cable (60W/100W or E-marked cables are a safe bet).
• A note on very strict chargers. This works with the large majority of USB-C PD chargers and power banks. A few unusually strict chargers — some Apple laptop chargers and certain premium GaN units — police PD aggressively and may refuse to hold the 9V contract (the LED won’t light). If that happens, use a different, more permissive charger. If you want guaranteed compatibility with any USB source — including those strict chargers, plain 5V ports, and dumb USB-A bricks — choose the standard (non-Lite) version, which boosts from 5V to the factory 7.5V and needs no PD at all.
• Note on multi-port chargers: many briefly cut power to all ports when another device is plugged in or removed — avoid hot-swapping while playing.

Built and tested by hand

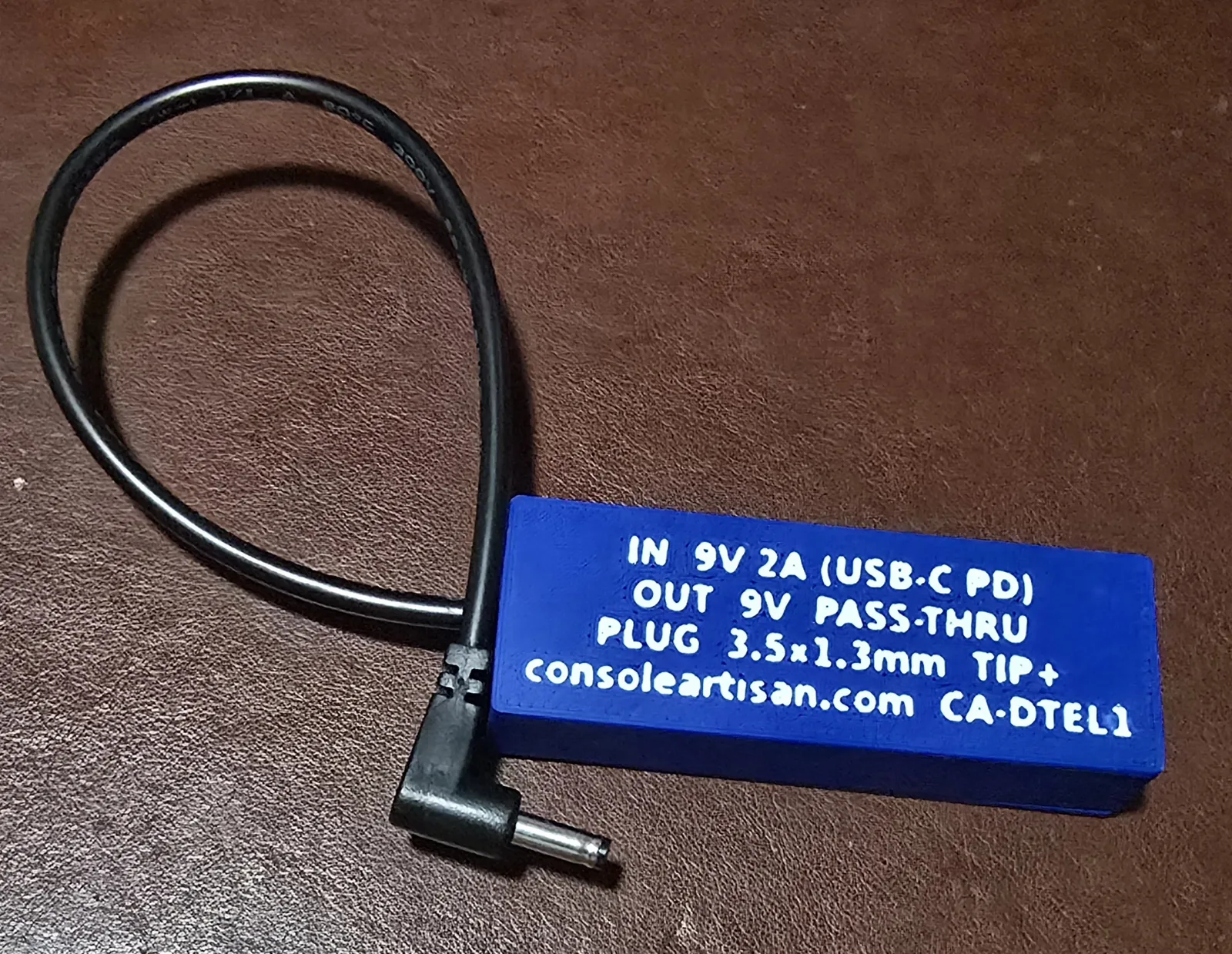

• Enclosed and labeled. A case 3D-printed in commercial-grade ASA — a UV-stable plastic that won’t yellow or get brittle — with captive nuts holds everything together, clearly marked with voltage and polarity.

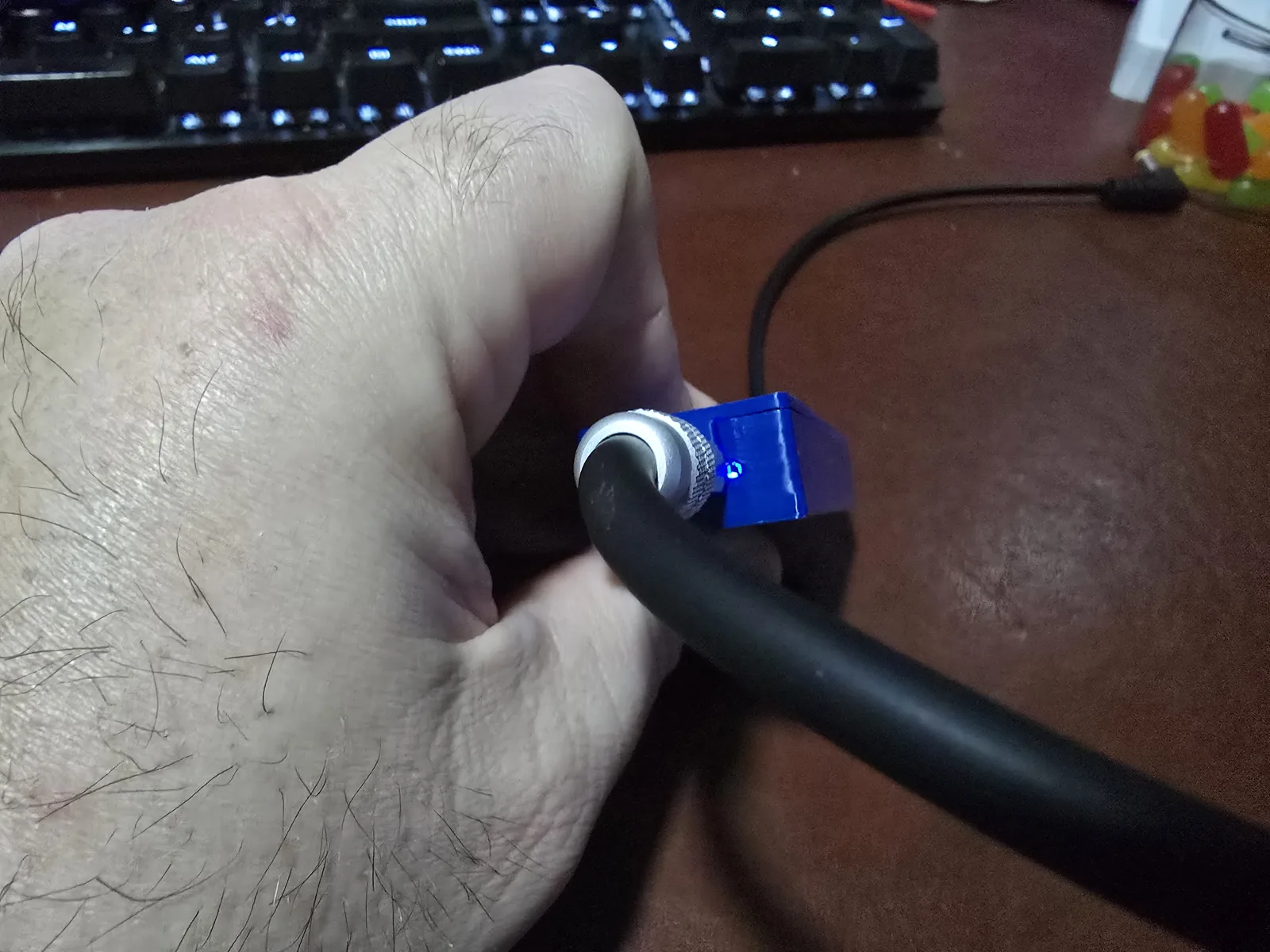

• PD-status LED for instant confirmation of a good 9V contract.
• Foolproof internal strain relief so the solder joints never take a pull.
• Verified on the bench. Each design is proven on real hardware; every unit gets a final output-voltage check before it ships.

Compatibility

Uses a center-positive, right-angle 3.5 x 1.35 mm barrel jack, built specifically for:

• NEC TurboExpress
• NEC PC Engine GT (the Japanese equivalent — identical power input)

Please note: do not use this adapter with an original Game Boy (DMG-01). It shares the same plug size but uses the opposite polarity (center-negative) and a lower voltage. The labeled enclosure is there specifically to prevent that mixup.

An excellent troubleshooting step

Seeing display issues, audio buzz, or unreliable behavior from your TurboExpress? Those symptoms are often caused by aging power circuitry or a marginal power source. Feeding the console clean, correct voltage is a great first step: if the issues clear up, your old power source was the culprit; if they persist, it is a strong sign the console itself needs internal servicing (these units are well known for needing a re-cap).

Custom orders & bulk pricing

Buying more than one? Get 15% off when you buy two or more — mix and match any of my dongles — and they ship together, so you save on shipping too. Need a larger quantity or a custom build? Send a message — I can accommodate specific cable lengths, different barrel sizes or polarities, and other output voltages.

About the maker

I’m an electrical engineer and long-time hobbyist with a passion for vintage electronics, especially classic video games. The items I sell are projects from my personal workshop. All items are guaranteed working on arrival and in the state described. Thanks for looking.
