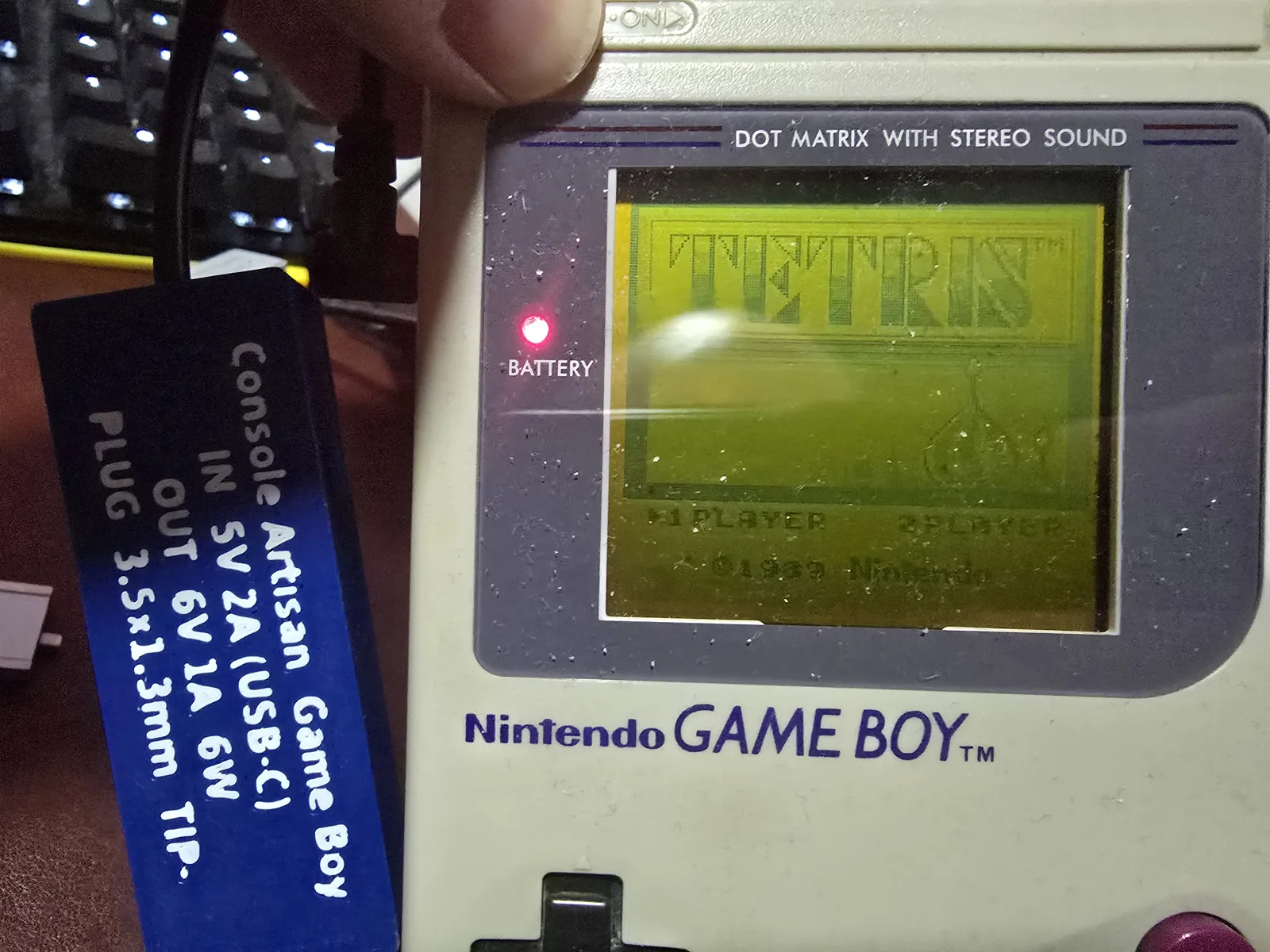

USB-C 6V Power Adapter for Original Nintendo Game Boy (DMG-01)

Power your original Game Boy with modern USB-C at its true 6V — no PD required

Ditch the bulky, aging power brick and the AA batteries. This is a brand-new, custom-built power adapter that lets you run your original Game Boy (DMG-01) from almost any modern USB power source. As a fellow enthusiast, I built this one to be the polished, foolproof way to keep the handheld that started it all alive.

This is the standard (boost) version: it contains an efficient onboard boost converter that delivers the DMG’s true factory-spec 6V (the same as a fresh set of four AA batteries) from a plain 5V USB input. If you’d prefer the simplest, lowest-cost option, see the “Lite” listing — the DMG runs perfectly on a straight 5V supply, so the Lite skips the boost converter entirely.

Transparency matters to me, so here’s exactly what you’re getting: these adapters are hand-built in small batches to one consistent spec, so the photos are representative of what will arrive — same components, same enclosure, same build, same testing, unit to unit. The only thing that varies is cable length (about 6 to 18 inches, depending on the barrel jack I have on hand); if you need a particular length, just ask before ordering. Your satisfaction is what matters most to me, and I’m always glad to answer questions before or after a sale.

What’s included

• One (1) custom-built, enclosed USB-C 6V power adapter for the original Game Boy (DMG-01).
• Adapter only. This does not include a USB-C power brick, a USB-C cable, or a console.

Which version do you need — this 6V, or the 5V Lite?

Honest answer: for a stock or lightly-modded Game Boy — including most IPS and backlight screen installs — the cheaper 5V Lite is genuinely all you need. The DMG runs everything off an internal regulator built for the full four-AA battery range, and 5V sits comfortably inside it.

Step up to this 6V version if one of these is you:

• You run a power-hungry mod stack — a backlit IPS screen and a flash cart, especially together. A flash cart alone can draw about as much as the rest of the console, and the DMG’s stock regulator is notoriously marginal under load. Feeding it the full factory 6V gives that regulator more headroom (and pulls less current from your USB source), so there’s more margin against brownout. If you’re really pushing it, the deeper fix is replacing the DMG’s regulator — but the 6V buys you real margin in the meantime.

• You want a rock-steady output that stays at 6V no matter the cable or charger, instead of riding on whatever a 5V passthrough delivers under load.

• You want it fed at its original 6V design spec — simple as that.

One thing the 6V does not do: it won’t make an IPS screen brighter or your audio cleaner. The Game Boy generates its own internal 5V and LCD rails either way, so to the running console the two versions are electrically identical — the 6V is about headroom and feeding the console at spec, not picture or sound.

The modern power solution — and why it’s better

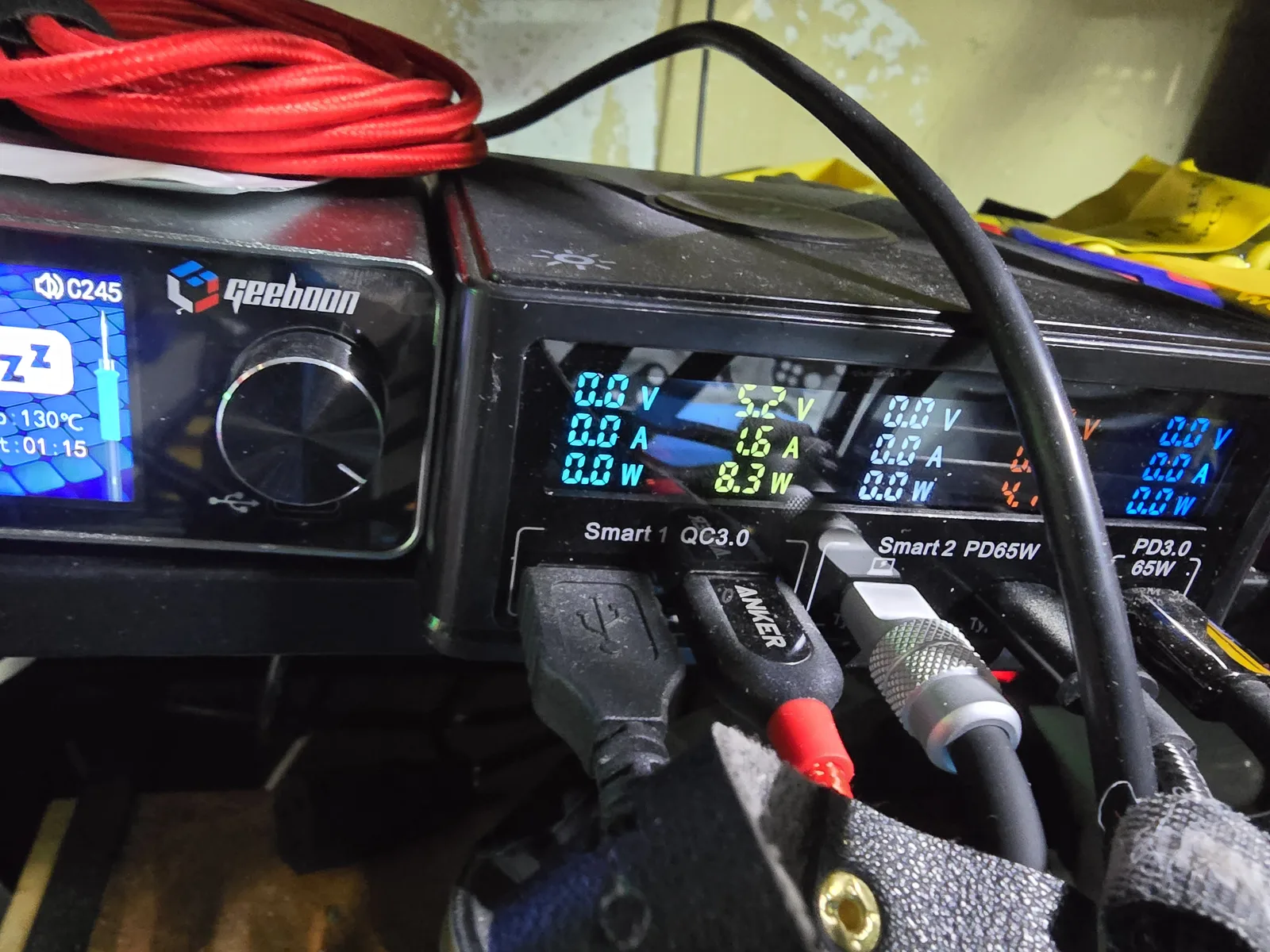

Because it only needs 5V in, it runs on practically anything: phone chargers, laptops, power banks, car ports, and plain “dumb” USB-A bricks. No PD handshake, no compatibility roulette. The onboard converter steps that 5V up to a clean, regulated 6V — exactly what the DMG was designed for. The Game Boy sips power (roughly 55 mA), so even a small power bank will run it for a very long time.

• Right-angle connector. The DMG’s power port is on the side, so a right-angle barrel jack keeps the cable tucked out of the way and reduces strain on the port.

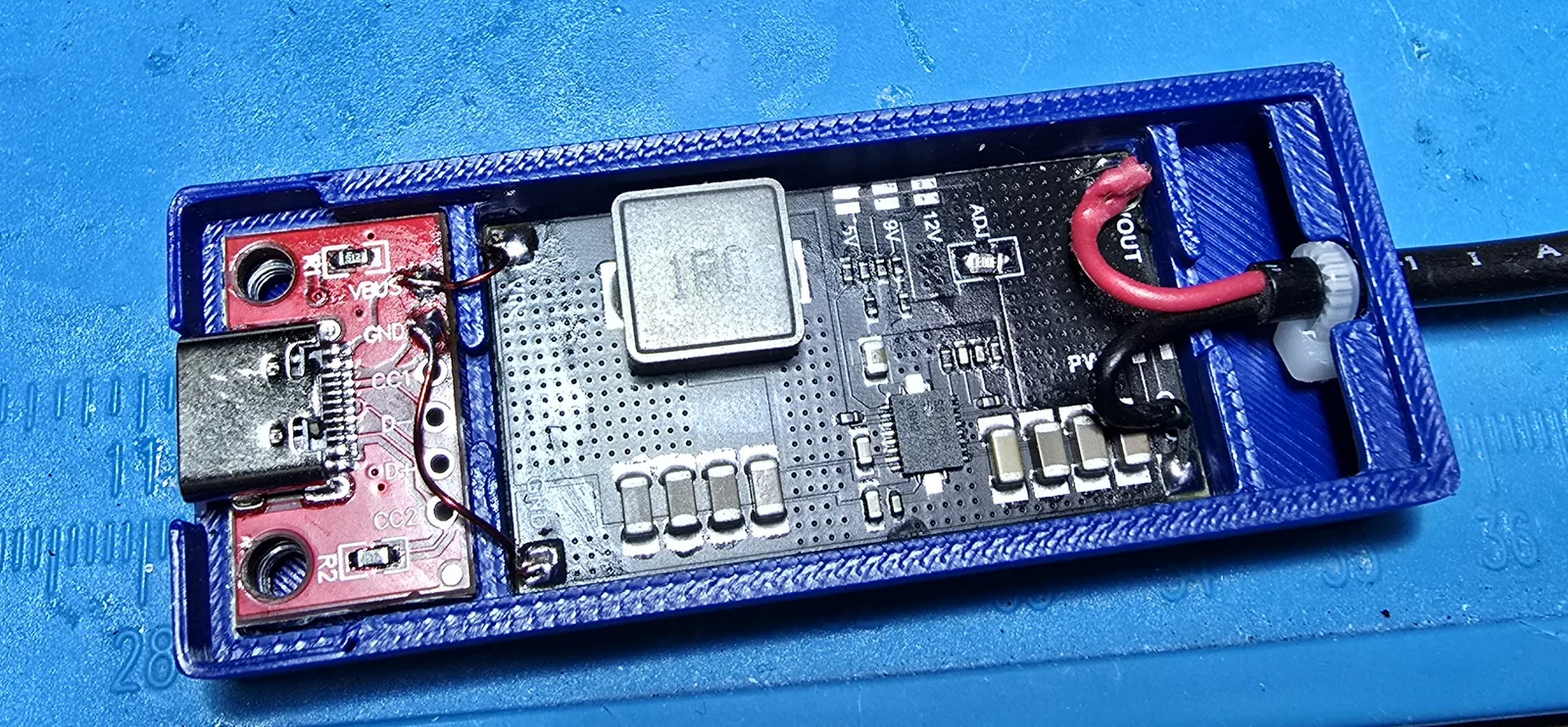

• Regulated, and steady under load. The onboard converter holds a true 6V even if a marginal cable or charger would let a straight 5V passthrough sag — useful when a console is pulling extra current from added mods.

Built and tested by hand

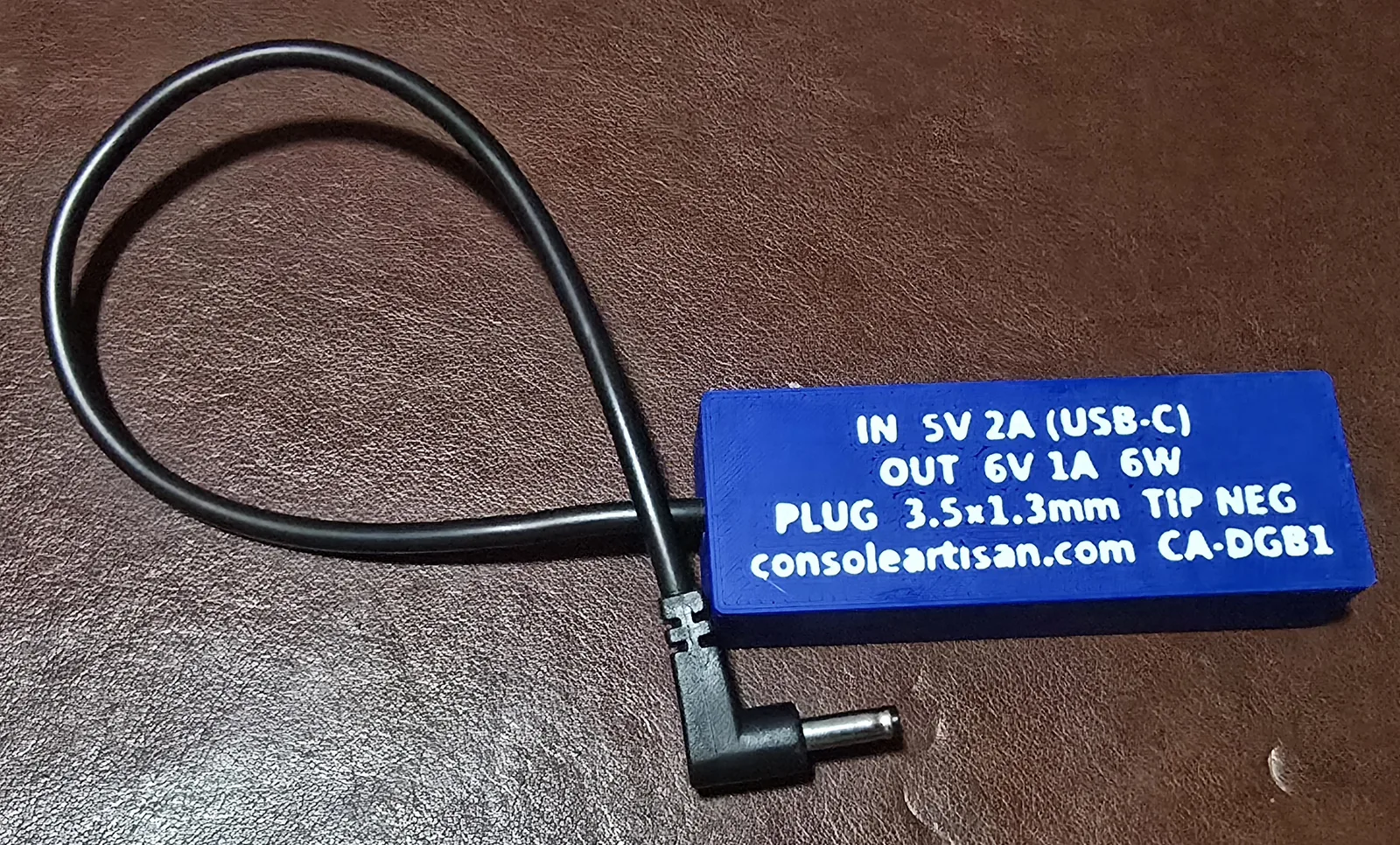

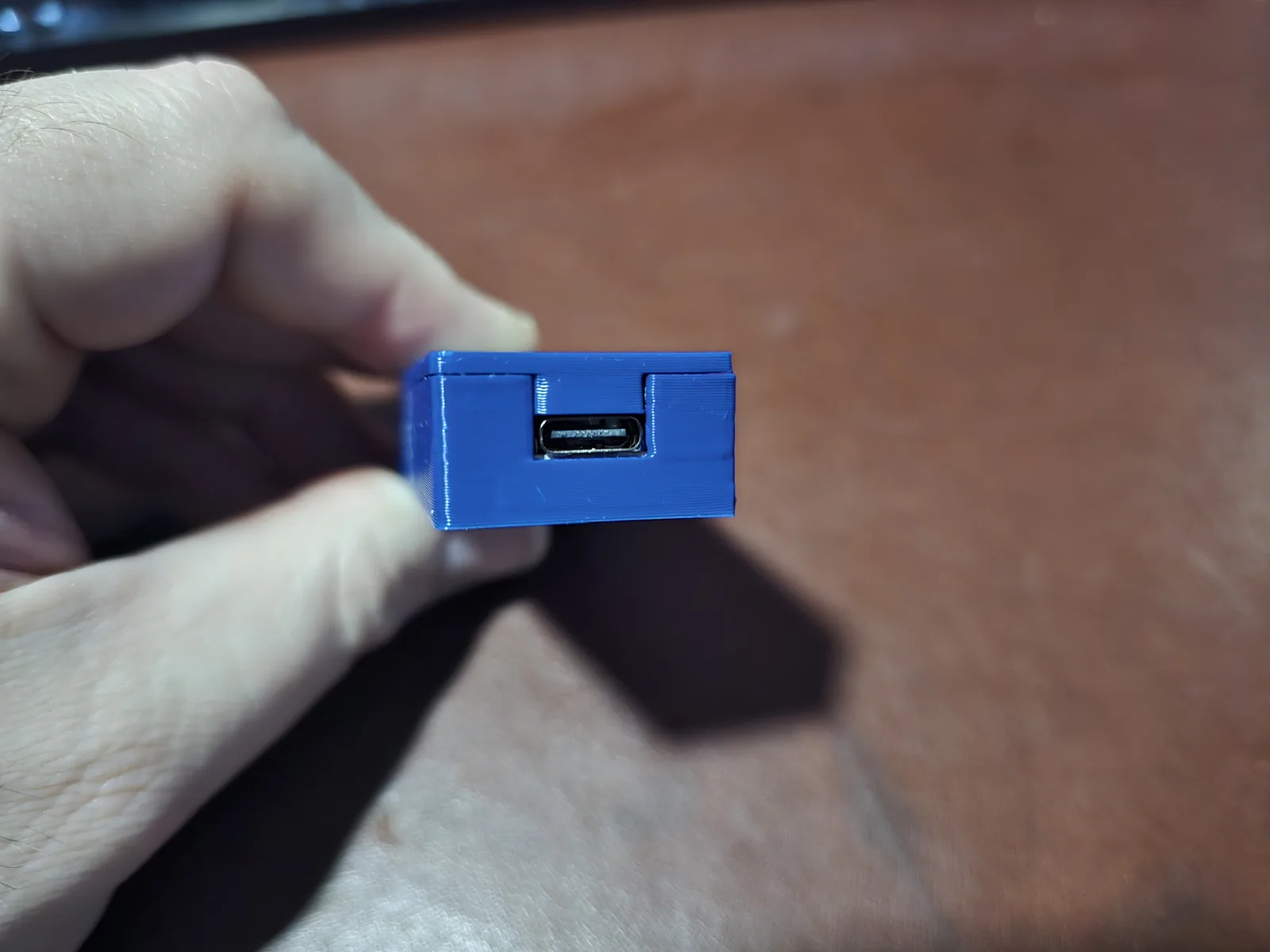

• Enclosed and labeled. A case 3D-printed in commercial-grade ASA — a UV-stable plastic that won’t yellow or get brittle — with captive nuts holds everything together, clearly marked with voltage and polarity — it looks and feels like a finished product, not a hand-wrapped cable.

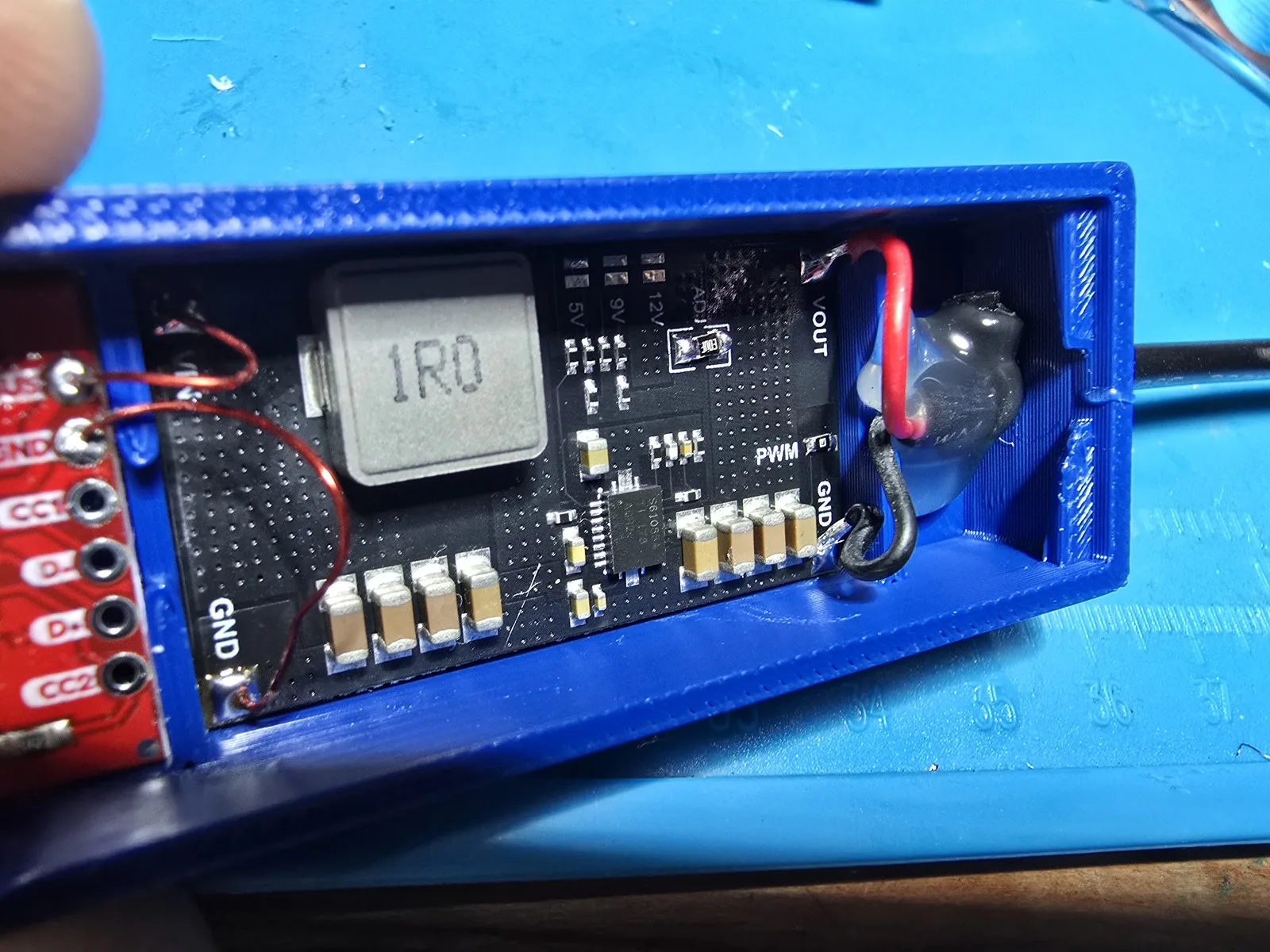

• Foolproof internal strain relief so the solder joints never take a pull.
• Runs cool thanks to the high-efficiency synchronous converter.

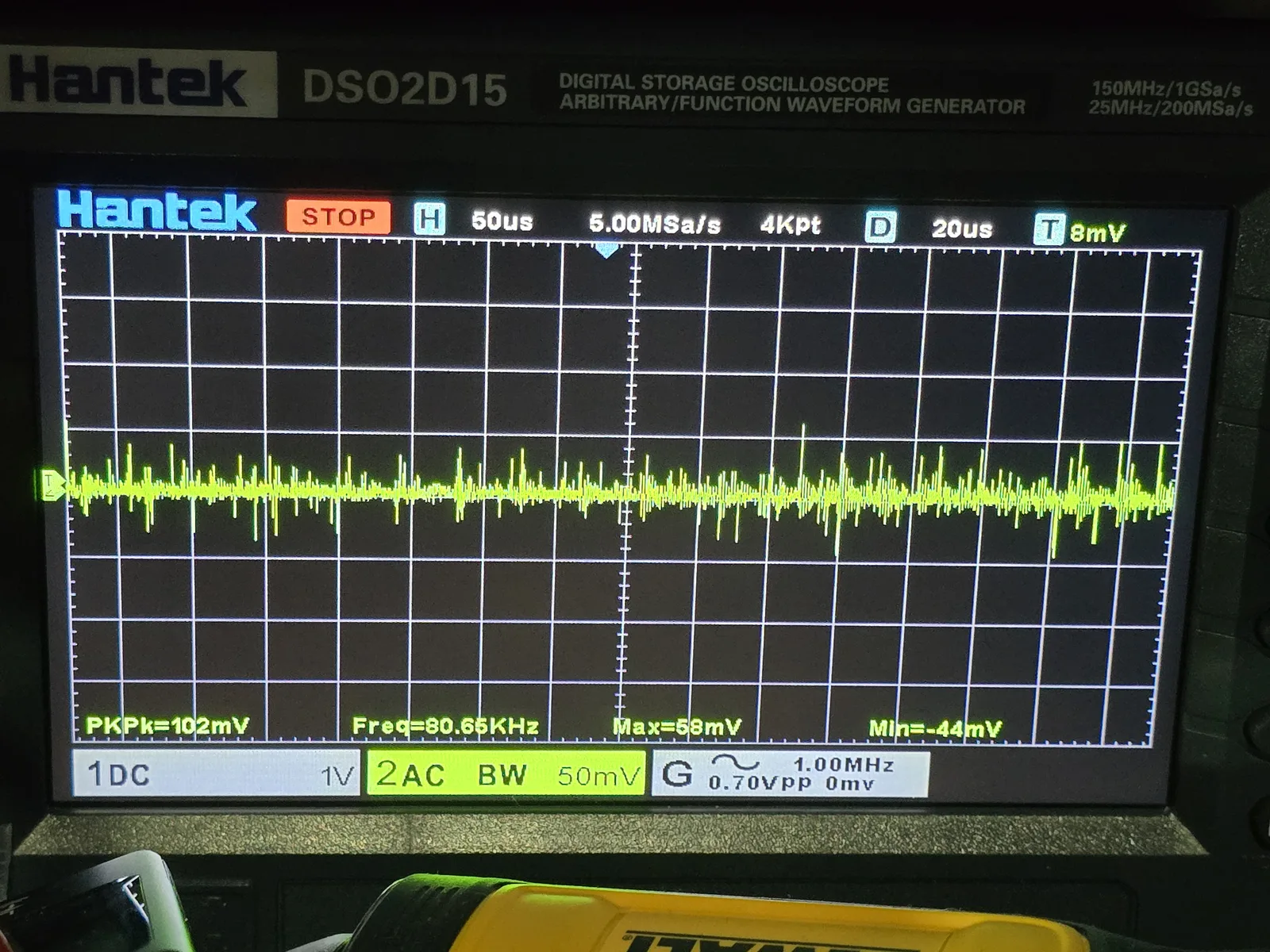

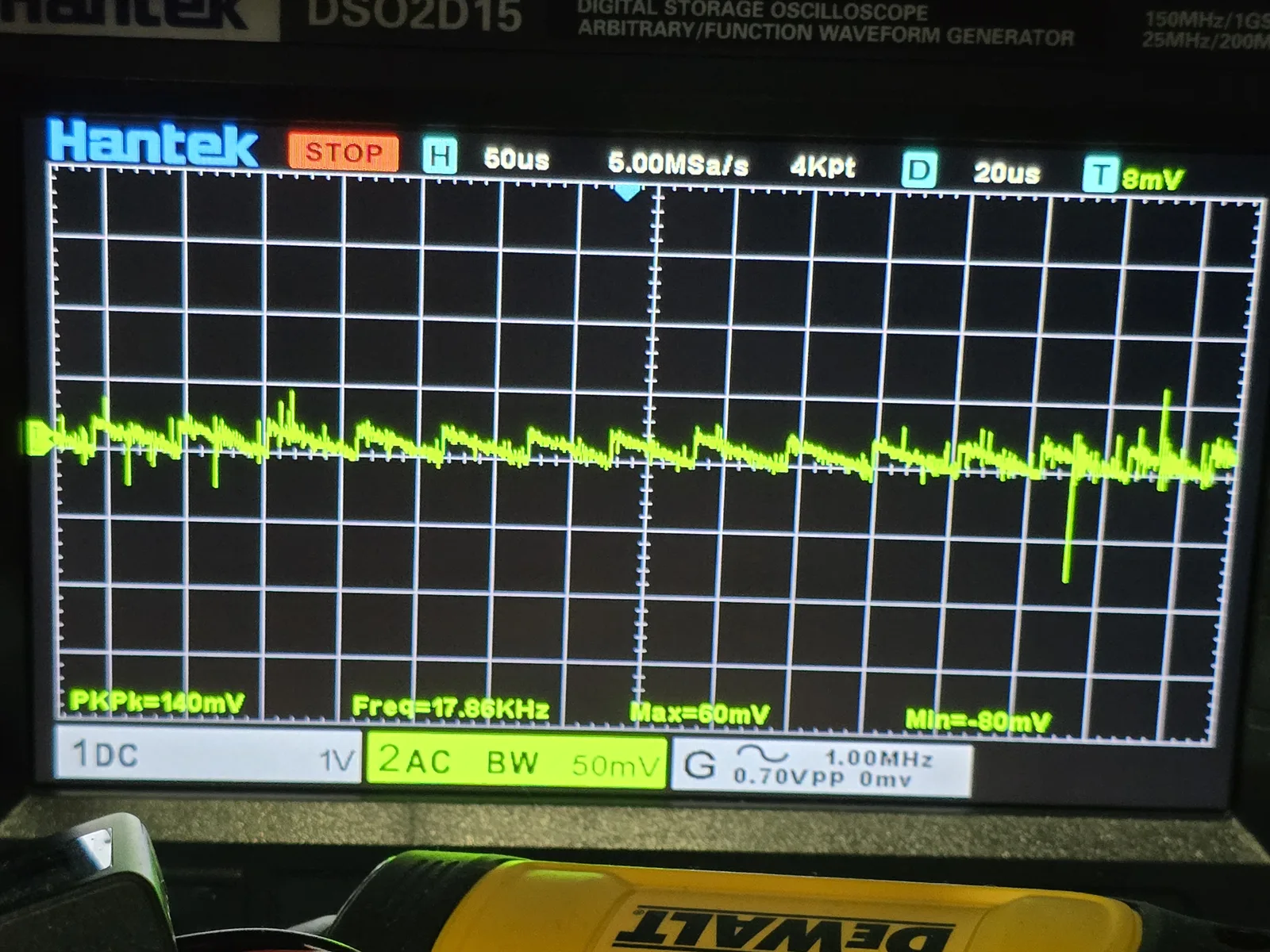

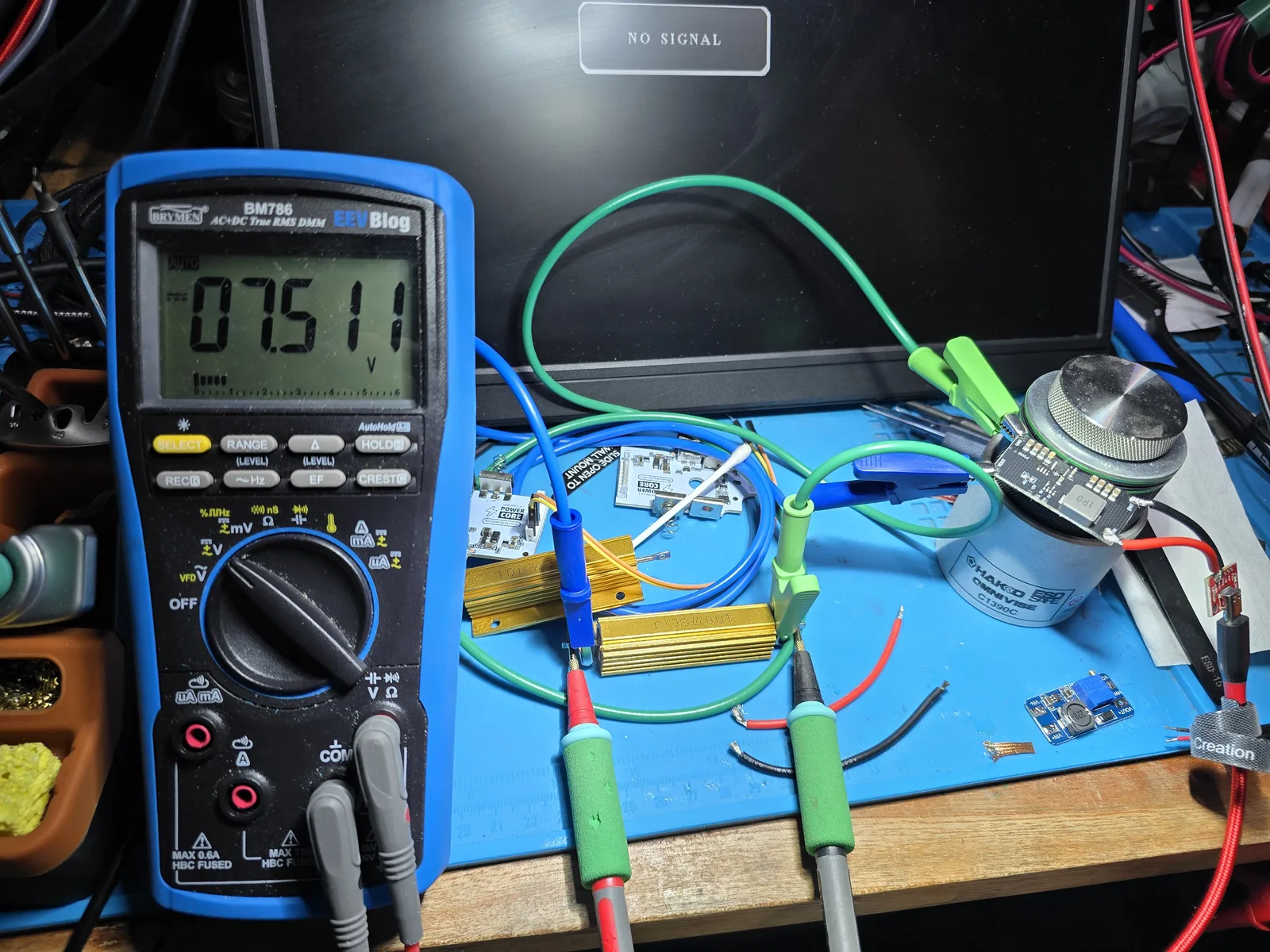

• Verified on the bench. I validate each design under full load and for ripple; every unit then gets a final output-voltage check before it ships.

Compatibility

Uses a center-NEGATIVE, right-angle 3.5 x 1.35 mm barrel jack, built specifically for:

• Original Nintendo Game Boy (DMG-01)

Please note: the Game Boy Pocket, Game Boy Color, and Game Boy Advance use different power connectors and are not compatible. And critically — the original Game Boy is center-negative, the opposite polarity of an NEC TurboExpress even though they share the same plug size. Do not use a TurboExpress adapter on a Game Boy or vice versa. The labeled enclosure is there specifically to prevent that mixup.

An excellent troubleshooting step

Seeing rolling lines on the screen or hearing a hum from the speaker? Those symptoms are often caused by an aging original power supply. Feeding the console clean, regulated voltage is a great first step: if the issues clear up, your old power source was the culprit; if they persist, it is a sign the console itself may need internal servicing (a re-cap).

Custom orders & bulk pricing

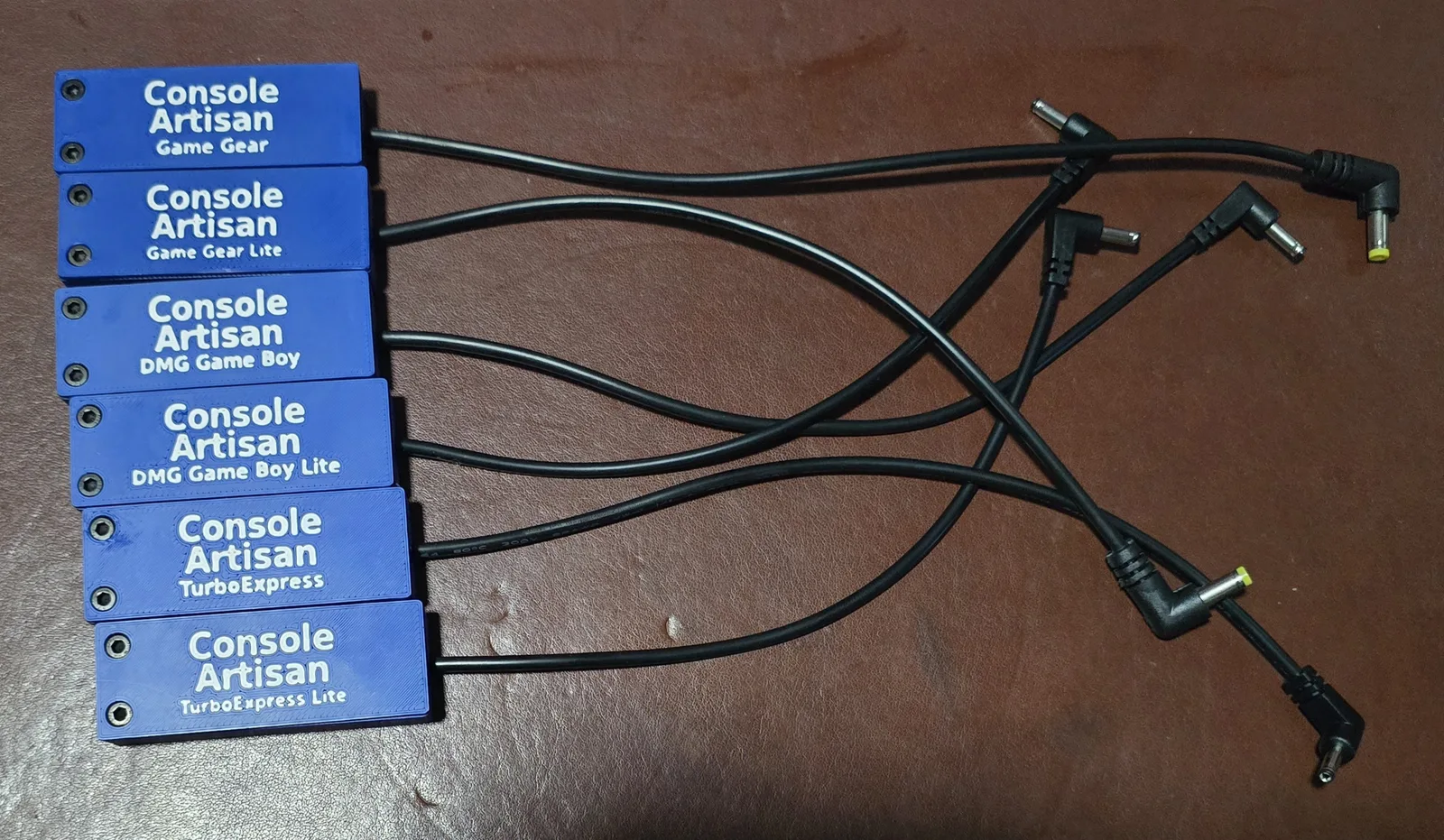

Buying more than one? Get 15% off when you buy two or more — mix and match any of my dongles — and they ship together, so you save on shipping too. Need a larger quantity or a custom build? Send a message — I can accommodate specific cable lengths, different barrel sizes or polarities, and other output voltages (5V, 6V, 7.5V, 9V, 12V, 15V, or 20V).

About the maker

I’m an electrical engineer and long-time hobbyist with a passion for vintage electronics, especially classic video games. The items I sell are projects from my personal workshop. All items are guaranteed working on arrival and in the state described. Thanks for looking.
